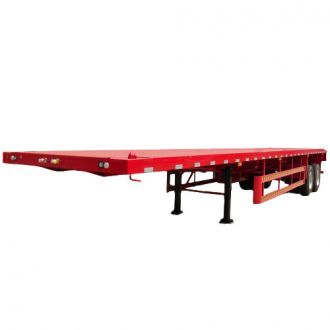

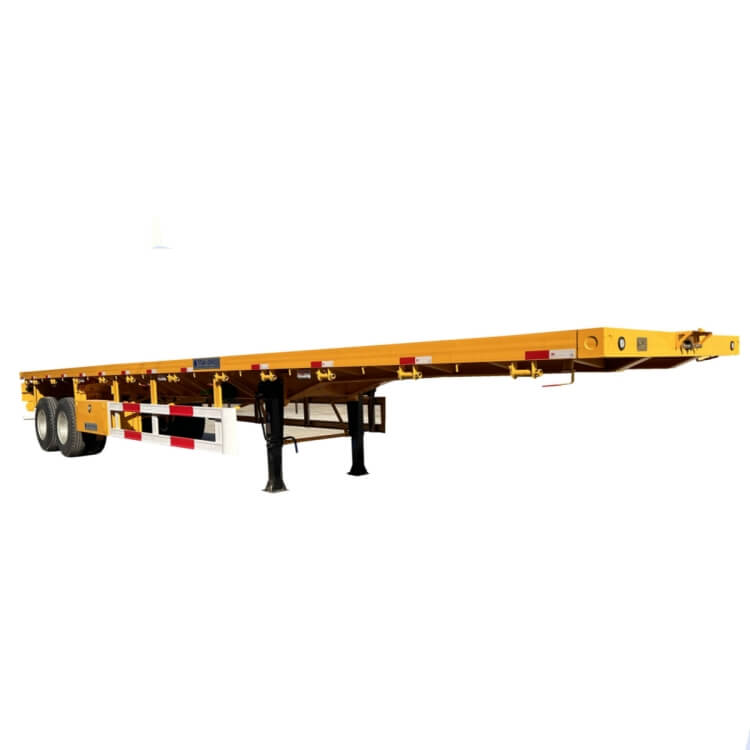

2 Axle 40 Ft Flatbed Semi Trailer

Flatbed Semi Trailer Description :

2 axle flatbed semi trailer for sale is one of the most popular model in TITAN. TITAN can also offer 2/3/4 axle, 20/40/45/48 ft container flatbed semi trailer for sale, the capacity from 40 to 100 tons.

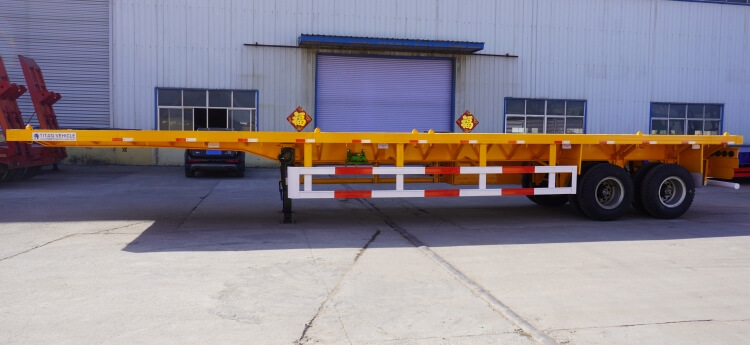

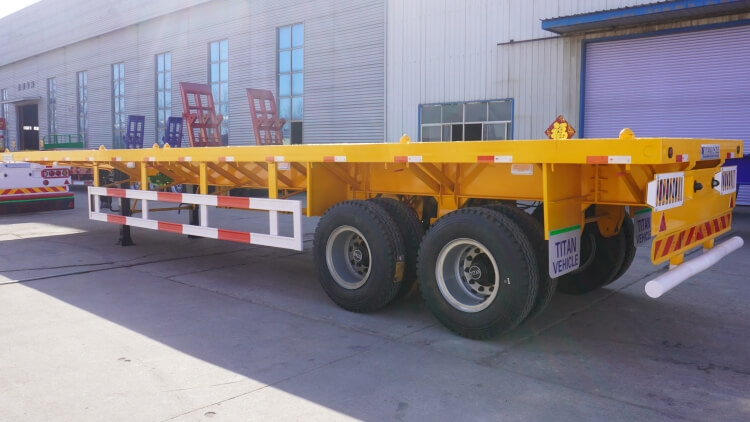

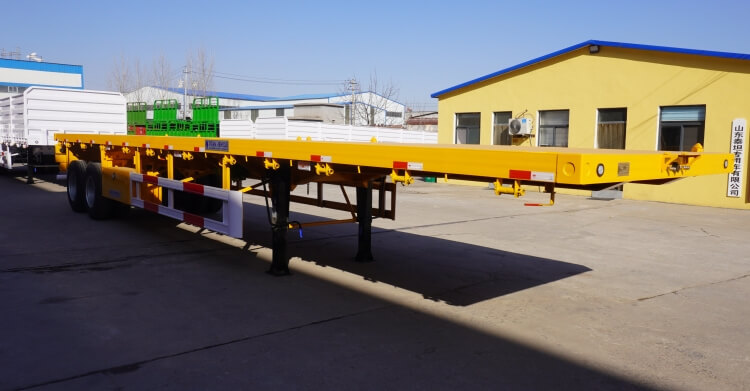

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Guinea

Flatbed Semi Trailer for Sale Description :

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤40T

Axles: 2 axles, 13T/16T ,FUWA/ BPW

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

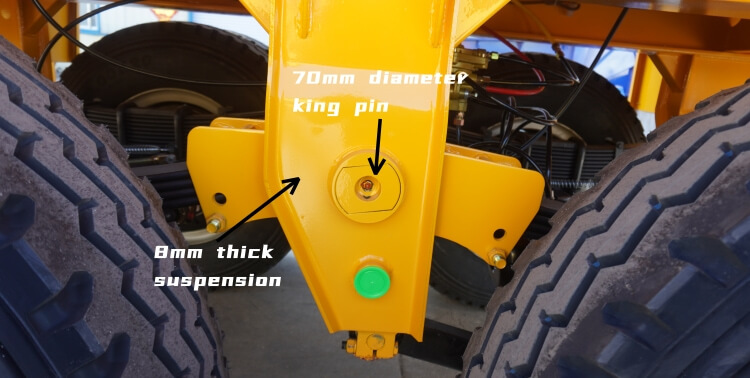

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand D200T or Chinese brand 28tons

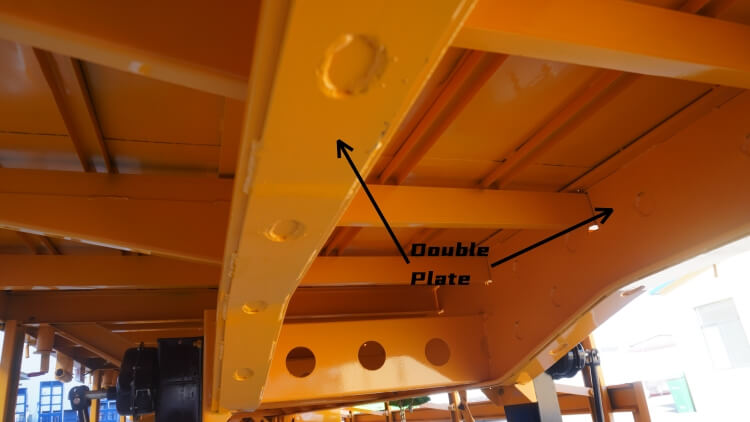

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

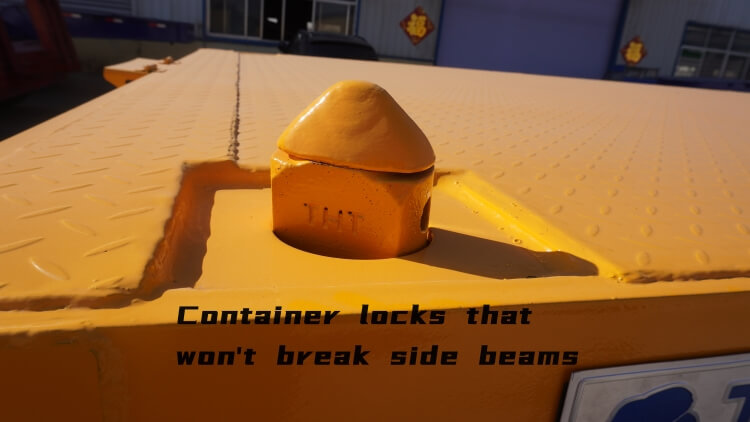

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

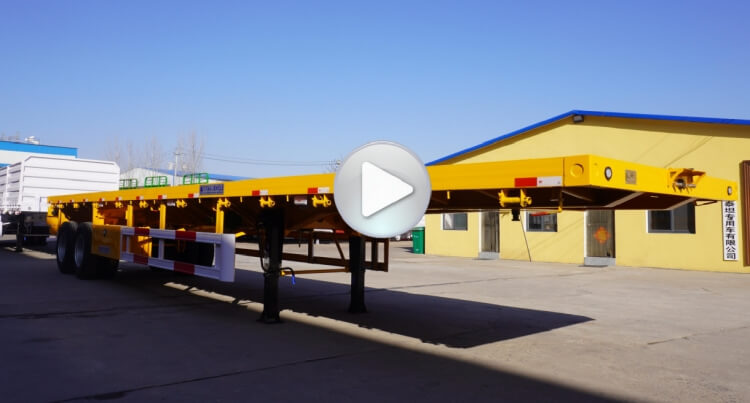

Video of Flatbed Semi Trailer for Sale :
