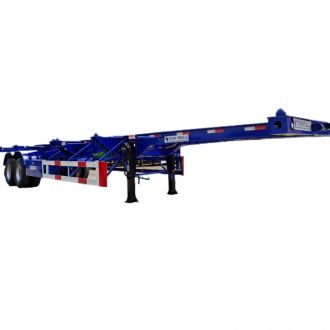

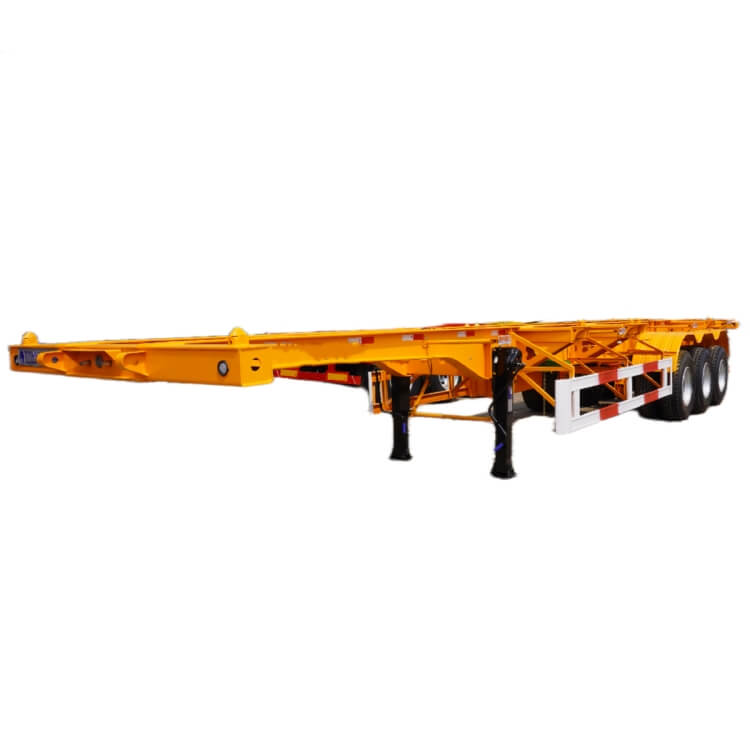

Tri Axle 40ft Cargo Container Trailer Chassis

Container Trailer Chassis Description:

This container trailer for sale can transport two 20-foot standard shipping containers and one 40-foot standard shipping container, and when the box is empty, the 40ft container trailer can also transport two 20-foot containers. At the same time, our cargo container trailer are equipped with container locks to ensure the safety of container transportation.

Similarly, in order to save the transportation cost of customers, this container trailer chassis can be loaded into a 40-foot-high container every two units, without removing the tire axles, realizing the containerized transportation of the whole vehicle, and it is convenient for customers to load and unload the vehicle in the case of saving freight.

Compared with the cargo container trailer produced by other companies, the frame height of the container trailer for sale produced by our company is lower, the body is lighter, and the tire wear and fuel consumption are smaller without affecting the load.

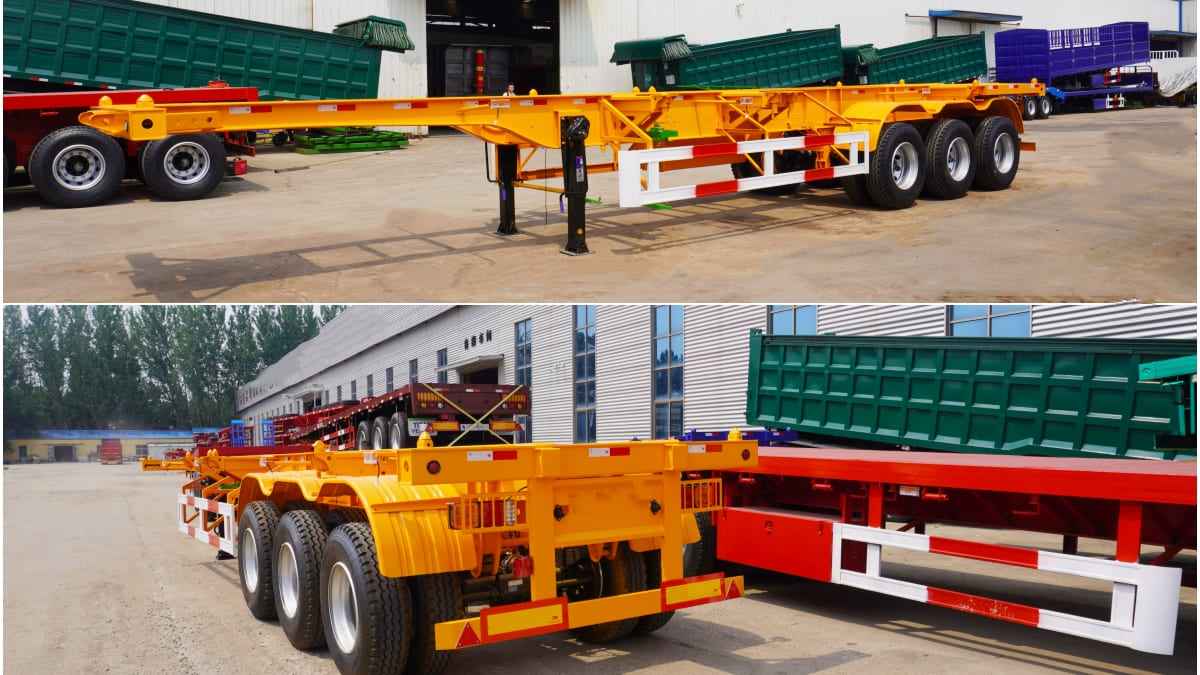

Tri Axle 40ft Cargo Container Trailer Chassis for Sale in Guinea

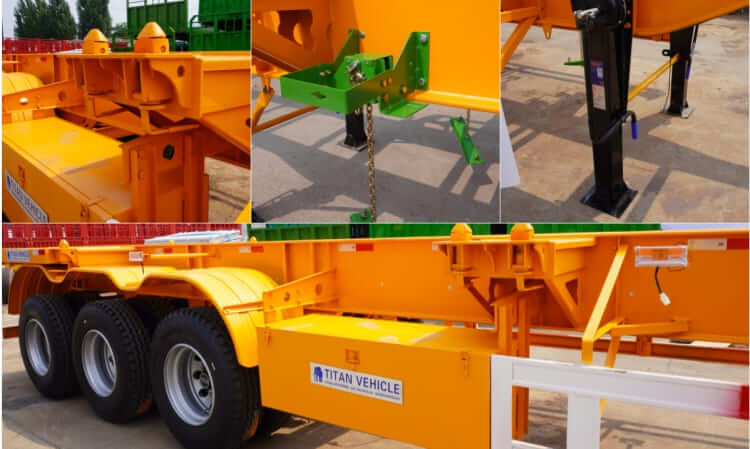

Tri Axle 40ft Cargo Container Trailer Chassis for Sale in Guinea

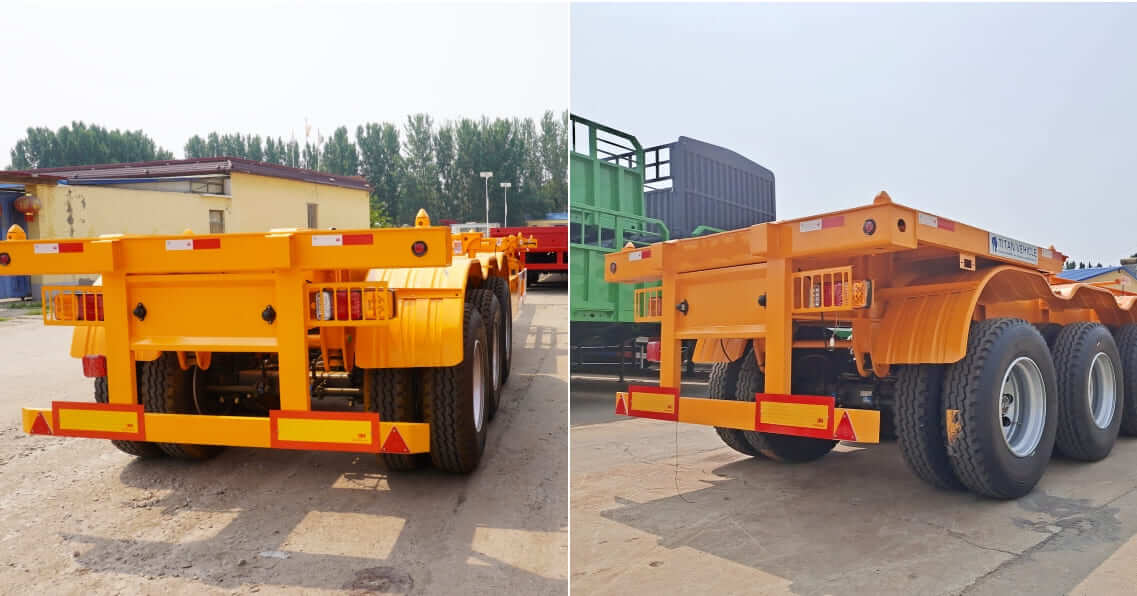

Tri Axle 40ft Cargo Container Trailer Chassis for Sale in Guinea

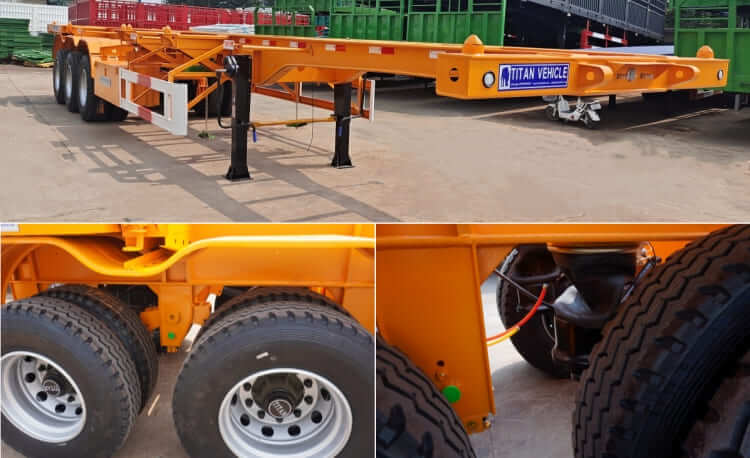

Tri Axle 40ft Cargo Container Trailer Chassis for Sale in Guinea

Specification of Tri Axle Container Trailer:

Model: Tri axle 40ft container trailer

Transport: 20ft, 40ft container

Loading capacity(ton): 60-80T

Overall dimension: 12500mm * 2500mm *1530mm

Platform: 3mm-thick checkered plate

Axles: 3 axles , 13t/16t

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1  PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Container Trailer for Sale Advantages:

1. Container trailer chassis is a special vehicle used for container transportation. It has advantages unmatched by other means of transportation. Sinotruk has many years of R&D and manufacturing experience in the field of container transportation cargo container trailer, which the product quality is guaranteed.

2. We learn from the existing mature lightweight technology of warehouse grid semi trailers and apply them to container trailer for sale. Under the premise of the same box weight, we can load more goods and achieve greater economic benefits for our customers.

3. The height of the container trailer chassis is also relatively low. On the one hand, the height reduction is strong, and the road adaptability is wider; on the other hand, it is also a more important aspect to ensure the safety of transportation. It is more stable, especially when turning at high speed or in emergency situations, which can effectively avoid risks.

4. Container trailer for sale adopts the technology of excellence, pursues high quality, unique ingenuity, and highlights the brand advantage in subtleties. TITAN container trailer chassis is not only a high-quality product, but also a work of art with lean workmanship, which is a high evaluation of trailers.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
