2 Line 4 Axle Semi Low Loader Trailer

Low Loader Trailer Description:

The low loader trailer for sale has flatbed, concave beam and tire exposed structure, and the longitudinal beam is straight or gooseneck. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

Semi low loader trailer is also widely used for transportation of various types of machinery and equipment, large objects, road construction equipment, large tanks, power station equipment and various steels. The optimized design for low-vehicle transportation of the whole used low loader trailer is flexible and diverse, and the frame bearing surface can be designed according to user requirements to meet your transportation needs for various special goods.

When loading mechanical equipment on a low loader trailer, the mechanical equipment is usually loaded from the rear end of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi low loader trailer.

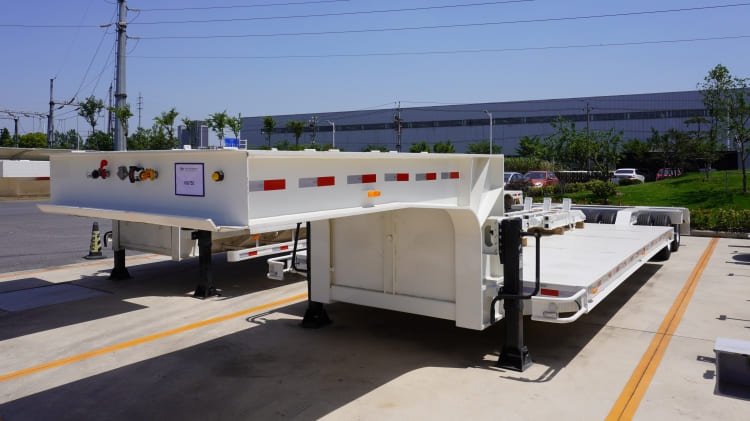

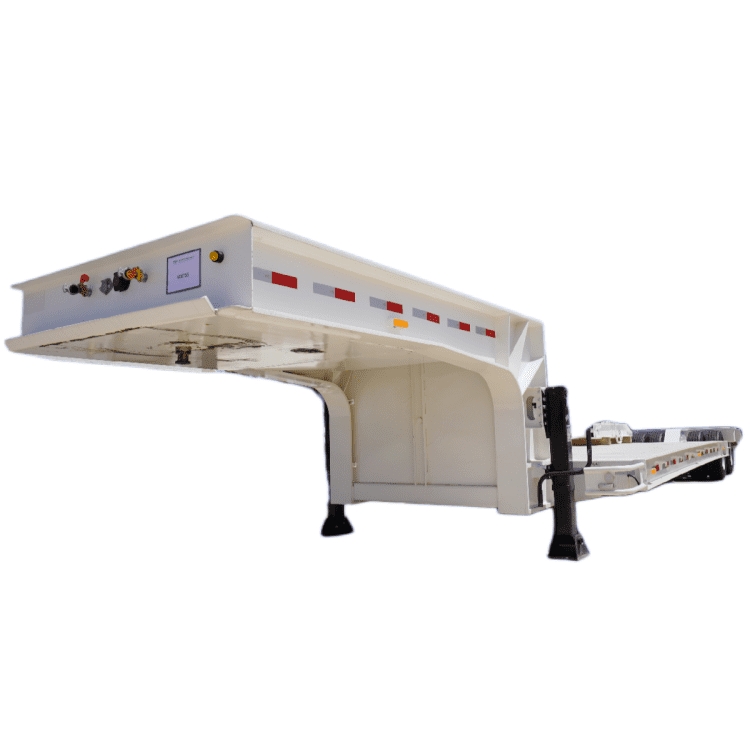

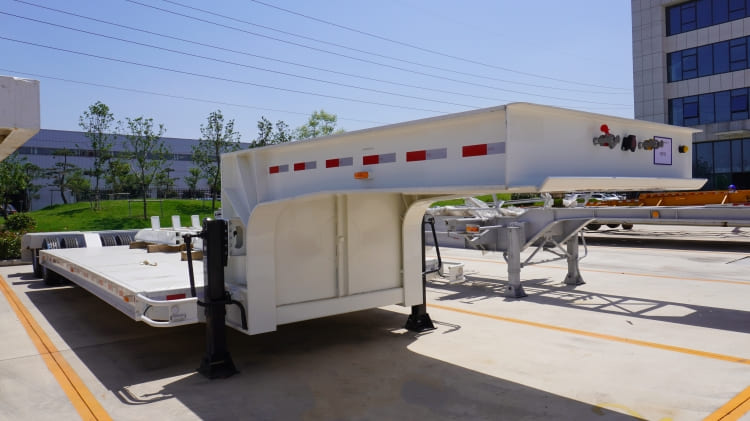

2 Line 4 Axle Used Semi Low Loader Trailer for Sale in Guinea Conakry

2 Line 4 Axle Used Semi Low Loader Trailer for Sale in Guinea Conakry

2 Line 4 Axle Used Semi Low Loader Trailer for Sale in Guinea Conakry

2 Line 4 Axle Used Semi Low Loader Trailer for Sale in Guinea Conakry

2 Line 4 Axle Used Semi Low Loader Trailer for Sale in Guinea Conakry

Semi Low Loader Trailer Specification:

Model: 2 line 4 axle low loader trailer

Loading capacity: 80-100 tons

Overall dimension: 14000mm * 3000mm *3600mm

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm

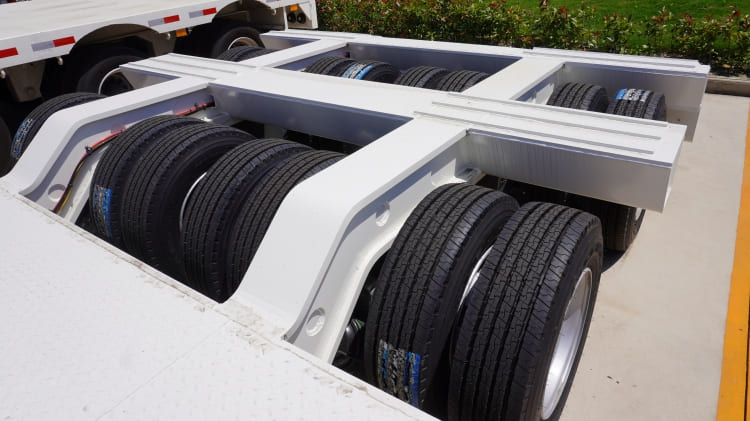

Axles: 2 line 4 axle, 13T/16T, FUWA / BPW / TITAN Brand

Suspension: Heavy duty mechanical spring suspension

Leaf spring: 90(W)mmx13(Thickness)mmx10 layer

Rim: 8.0-20

Tire: 16 units, 11.00R20

King pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Bottom Platform: 5mm thick checkered plate

Ladder: Hydraulic ladder/ Spring ladder

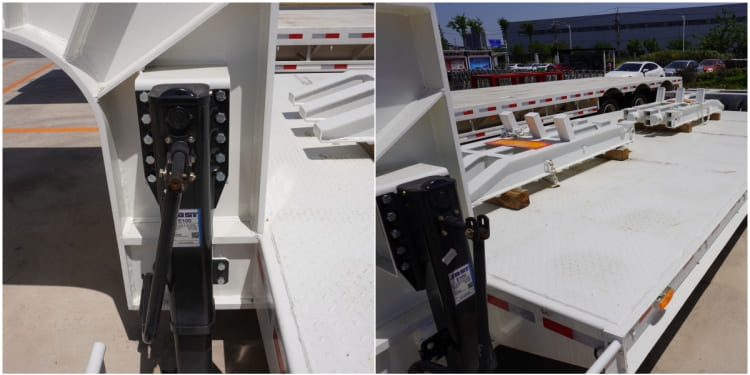

Landing gear: JOST/TITAN brand

Brake system: WABCO brand

Gooseneck: Optional

ABS: Optional

Electical system: LED lights

Voltage: 24V

Light: LED light

Tool box: 1 pcs

Socket: 7-pin socket

Shipping method: Transport By bulk cargo shipping or RORO shipping

Paint: Polyurethane paint

Low Loader Trailer Advantages:

1. Sinotruk low loader trailer for sale main plane of the frame and cargo platform is low, which ensures the stability of transportation, and is suitable for carrying all kinds of construction machinery, large equipment and steel.

2. The climbing ladder of the low loader trailer is welded with high-strength steel HG60 steel, which ensures the carrying capacity of heavy equipment when passing through the ladder. It also greatly ensures that the ladder will not be deformed or damaged when other heavy equipment such as excavators, bulldozers, forklifts and other heavy equipment pass through the spring ladder.

3. The low loader trailer for sale reinforced mechanical suspension is adopted, and a mass balance block is installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change in an equal amount, so that the front and rear axles are balanced in force.

4. Sinotruk's low loader trailer for sale adopts polyurethane paint, which has high adhesion, high color rendering and beautiful color, and the cost is twice that of ordinary paint. The paint has a long service life and we can guarantee that it will not peel off especially within five years. And customers can customize the color according to their own preferences.

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
