3 Axle 34ton Side Tipper Semi Trailer

Side Tipper Semi Trailer Description:

Compared with ordinary flatbed container semitrailers, the side tipper trailer for sale has one more unloading function, which is aimed at the transshipment and unloading of bulk containers, such as coal, iron ore, corn, wheat, feed and other containers.  Compared with ordinary container semi trailers, it has the big advantage of high efficiency in unloading bulk cargo. And 34 ton side tipper trailer for sale is one of the most popular products.

Compared with the ordinary container semi trailer, there are more self-unloading devices, and the self-unloading function is realized by driving the hydraulic top through the power take-off. The use of  side tipper semi trailer is also common in ports today. Use its flip back and side flip functions. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and there is a safety protection plate at the front end of the carriage.

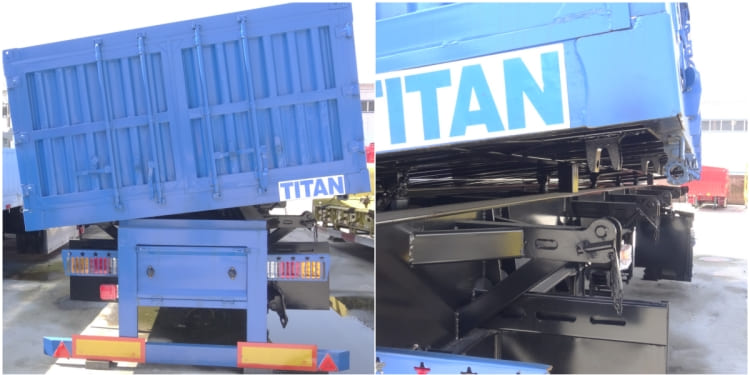

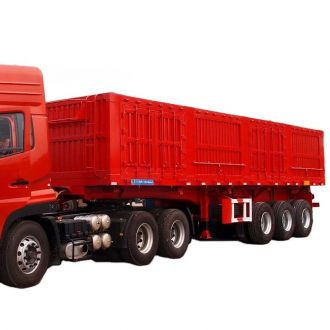

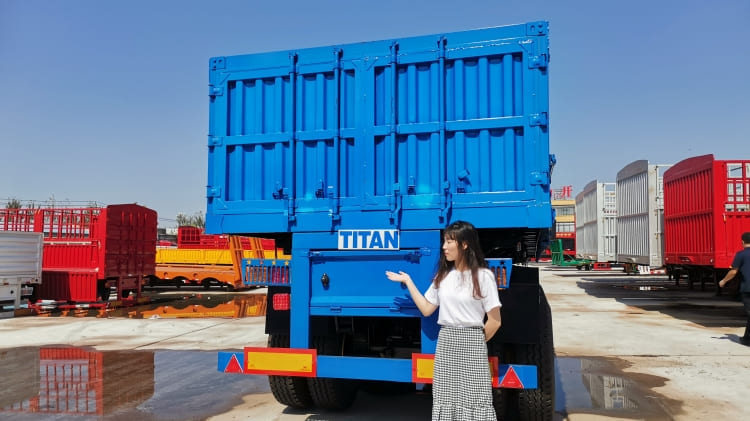

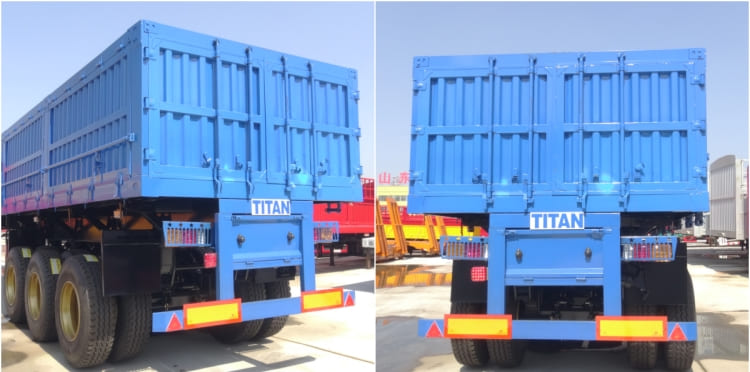

3 Axle 34ton Side Tipper Trailer Semi Trailer for Sale in Guinea

3 Axle 34ton Side Tipper Trailer Semi Trailer for Sale in Guinea

3 Axle 34ton Side Tipper Trailer Semi Trailer for Sale in Guinea

3 Axle 34ton Side Tipper Trailer Semi Trailer for Sale in Guinea

3 Axle Side Tipper Trailer Specification:

Model: 3 axle 34 ton side tipper trailer for sale

Brand: Sinotruk side tipper trailer

Chassis: Heavy duty and extra durability designed I beam

Axle: 3 axles

Tire: 12 units

Leaf spring: 10 PCS

Loading capacity: 34 tons

Hydraulic system: HYVA cylinder

Suspension: Mechanical suspension

Lifting system: Side lifting

Kingpin: 3.5’’ bolt - in king pin 90

Landing gear: JOST/FUWA

Braking system: WABCO

Accessories: One standard tool box , one rocker handle , one Shaft wrench

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Side Tipper Trailer Advantages:

1. Side tipper semi trailer can be designed according to customer requirements, such as left flip, right flip, left and right bilateral flip, which can effectively improve the transportation efficiency of bulk cargo transport by loader and unloader, create more economic value for customers, and save customers time and cost.

2. The main beam of side tipper trailer for sale are welded with high-strength plates, and the sub beams are finely welded, scientifically designed, accurate data, long service life, high safety factor, low after-sales rate, long service life, and praised by customers.

3. 34 ton side tipper trailer for sale body is made of high-quality steel, advanced technology, and strict welding process. The side tipper trailer has a reasonable structure, reliable performance, easy operation, and beautiful appearance. The color can be customized according to customer needs.

4. Wide range of uses, mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods, with strong applicability, it has become one of the medium and long-distance freight vehicles.

Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
