3 Axle 80 Ton Removable Gooseneck

Removable Gooseneck Trailer for Sale: 25800USD

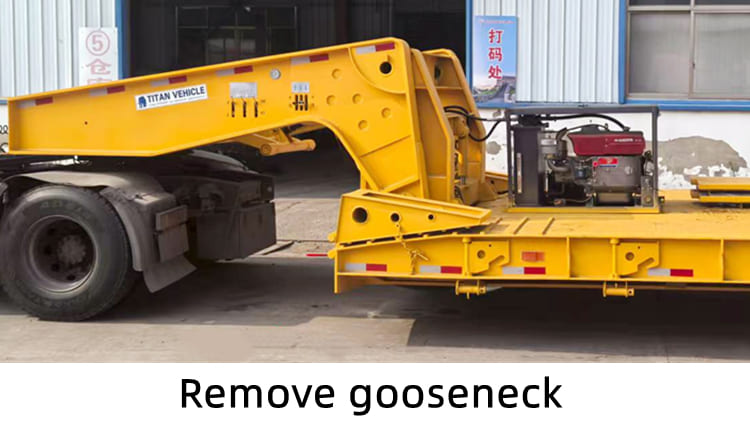

This removable gooseneck trailer adopts Q345 high strength steel to build the main frame to ensure load bearing stability. The core removable gooseneck is processed by forging technology, and the connection part is equipped with a high strength locking device, which makes the disassembly and installation process simple and fast without complicated tools. When it is necessary to load and unload heavy machinery such as excavators and loaders, just remove the gooseneck part, and the frame can form a gentle slope, allowing the equipment to drive onto the removable gooseneck by itself without the cooperation of hoisting equipment, which is especially suitable for remote construction sites in Guinea.

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

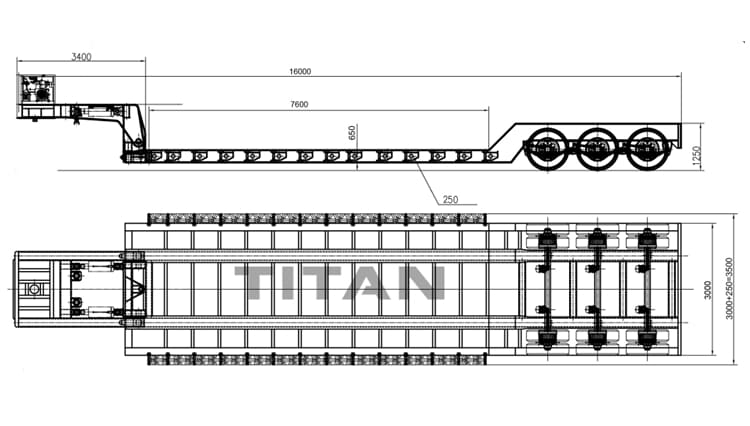

Specifications of Removable Gooseneck Trailer

Dimension: 16000mmx3000mmx2200mm

Loading capacity(T): 80 ton

Goose neck: Removable gooseneck

Axle: 3 axle, TITAN Brand

Tire: 12 units, 12R22.5

Suspension: Mechanical suspension

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Guinea

Advantages of Removable Gooseneck Trailer

The biggest highlight of this removable gooseneck trailer is its detachable gooseneck structure. This removable gooseneck design not only simplifies the loading and unloading process, but also reduces labor costs. For the common mountain road transportation scenarios in Guinea, after the gooseneck part of the trailer is removed, the center of gravity of the whole vehicle is lower, the driving stability is significantly improved, and the risk of rollover on curves is effectively reduced. Equipped with a quick locking mechanism, workers can fix and unlock the gooseneck with their hands alone, and it can operate normally even in the wild without power supply.

Aiming at the hot and rainy climate characteristics of Guinea, the removable gooseneck trailer adopts a three fold anti-corrosion treatment process. After sandblasting and derusting, the frame is first sprayed with epoxy zinc rich primer, and then coated with weather resistant polyurethane topcoat, which effectively resists the erosion of rainwater, mud and mine dust. The optional wear resistant rubber pad is laid on the load bearing surface of the frame, which can not only protect the equipment paint surface, but also increase friction to prevent goods from sliding, which is especially suitable for transporting precision engineering equipment.

In terms of safety configuration, the removable gooseneck trailer for sale is equipped with LED clearance lights and reflective strips. When driving at night in rainy and foggy mountainous areas, the visible distance is increased to more than 500 meters. The removable gooseneck trailer tires adopt a deep pattern off road design, which can provide strong grip on muddy mine roads or loose gravel roads. Cooperating with the enhanced braking system, it ensures driving safety under heavy load. The key parts of the frame adopt robot welding technology, and the weld strength is 30% higher than that of manual welding, which can adapt to long term high intensity transportation needs.

Packing of Removable Gooseneck Trailer

To ensure that the removable gooseneck trailer is intact during sea and land transportation, we adopt a customized packaging scheme. First, the removable gooseneck and the frame are fixed separately, and high strength buffer foam is filled between them to avoid collision and wear during transportation; the vulnerable parts of the frame (such as brake valves, light components) are wrapped with anti-collision shields, and the locking mechanism is coated with anti rust grease and sealed. The interior of the container is laid with a waterproof and breathable membrane, which can not only isolate marine moisture, but also discharge internal condensed water, fully adapting to the sea transportation and inland storage environment of Guinea.
