4 Line 8 Axles 150 Ton Low Bed Trailer Truck

Low Bed Trailer Description:

The low bed trailer has no fence in the on-board part and is widely used, mainly used for medium and long-distance freight transportation. Low bed trailer for sale are mainly used to transport some non-removable objects like excavators, loaders, bulldozers, harvesters, pavers, cranes, etc. or heavy vehicles such as tractors, buses, cars, etc.

In terms of structure and loading, the low bed trailer truck usually adopts a concave beam frame, that is, the front section of the frame is a gooseneck, the middle section is a cargo platform, and the rear end is a wheel frame. The lower its center of gravity, the better the stability and safety, and the better its ability to transport cargo and pass overhead obstacles.

When loading machinery and equipment on a low bed trailer for sale, the machinery and equipment are usually loaded from the rear end of the semi-trailer, that is, the machinery and equipment are loaded from the rear wheel frame, and then the machinery and equipment are fixed on the low bed trailer.

4 Line 8 Axles 150 Ton Low Bed Trailer Truck for Sale in Guinea

4 Line 8 Axles 150 Ton Low Bed Trailer Truck for Sale in Guinea

4 Line 8 Axles 150 Ton Low Bed Trailer Truck for Sale in Guinea

4 Line 8 Axles 150 Ton Low Bed Trailer Truck for Sale in Guinea

150 Ton Trailer Specification:

Model: 4 line 8 axles low bed trailer

Overall dimension: 17500mm * 3500mm *3400mm

Loading capacity(T): 100-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 32 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

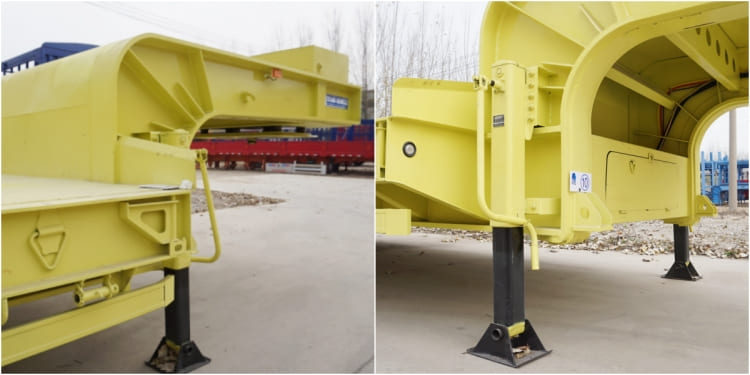

Landing gear: JOST brand/FUWA brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm

Bottom Platform: 5mm thick checkered plate

Ramp: Foldable hydraulic ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24 V

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Paint: Polyurethane paint

Low Bed Trailer Truck Advantages:

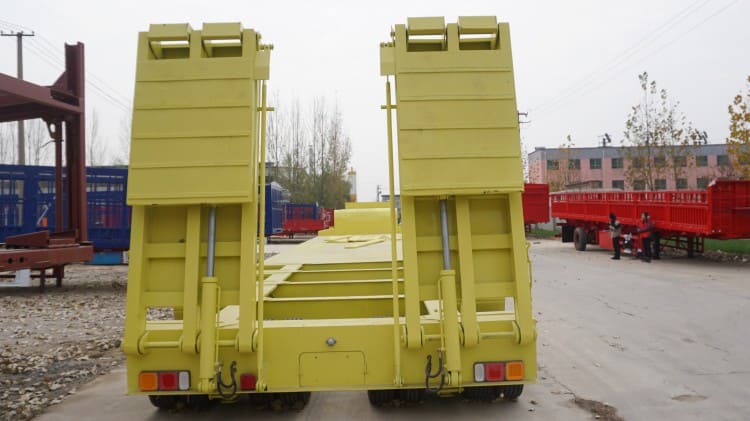

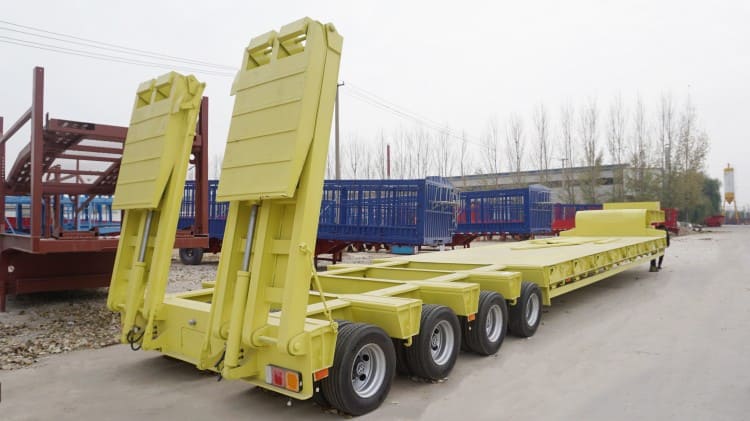

1. Low bed trailer truck ladder is durable, easy to lift, and has a strong load capacity. When heavy machinery passes through the ladder, the ladder will not be easily deformed or damaged. And customers can choose spring ladders, hydraulic ladders or foldable hydraulic ladders according to their cargo needs. The low bed trailer in the picture is equipped with a foldable hydraulic ladder.

2. Our low bed trailer truck suspension is reinforced front and rear, left and right. With a 70mm center balance pin, which can make the deflection of the front and rear spring plates change in equal amounts, so that the front and rear axles are balanced. And our low bed trailer is equipped with 16mm thicker leaf springs. After loading heavy machinery such as excavators, the deformation range is small.

3. The cross-section of the side beam is "H" type, which is a reinforced type, with good rigidity and moderate toughness. And the height of side beam is 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.

4. We provide professional packaging solutions, including bulk shipping or container shipping, and we also provide professional roll-on, wax spray and tarpaulin cover services, all free of charge.

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
