Front Board Flatbed Trailer

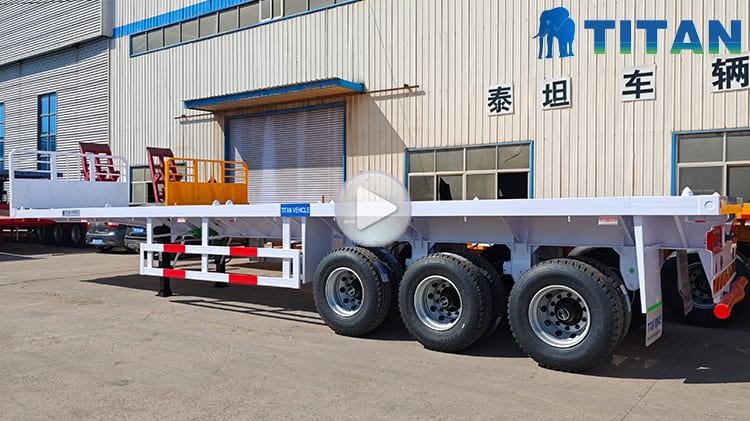

Video of Flatbed Semi Trailer Price

Buy 40 feet flatbed semi trailer now and get a spare tire for free!

40 Feet Flatbed Semi Trailer Price: 10000USD

The 40 feet flatbed semi trailer features adjustable container locks, allowing to accommodate containers of various sizes, including both 20-foot and 40-foot units. The frame has been specially engineered to enhance structural strength, increase load capacity, and extend the overall lifespan of the flatbed semi trailer price. To achieve the goals, the flatbed semi trailer is constructed using Q355 low-carbon, high-strength alloy steel, supplemented by multiple auxiliary support structures that further reinforce durability and performance.

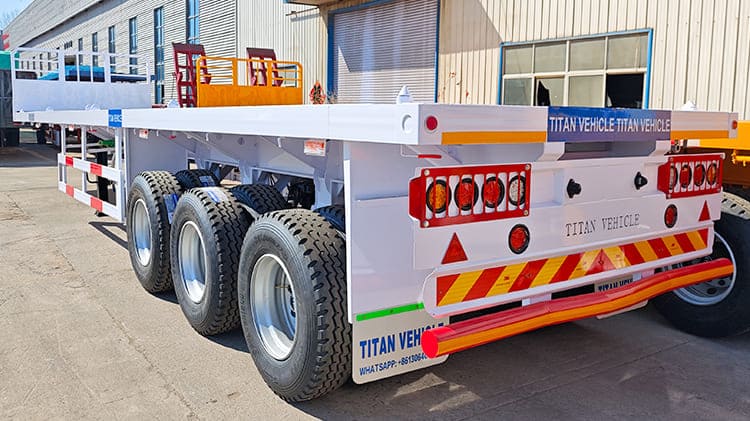

40 Feet Flatbed Semi Trailer Price for Sale in Guinea

40 Feet Flatbed Semi Trailer Price for Sale in Guinea

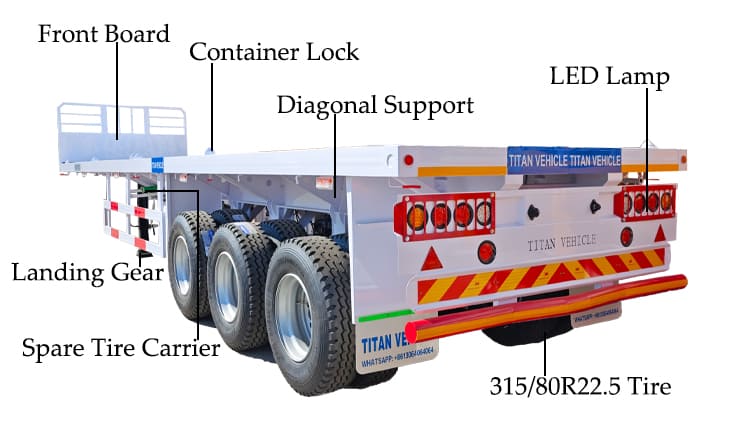

Specification of 3 Axle Flatbed Semi Trailer

Overall Dimension: 12500mm*2500mm*1580mm

Load Capacity: 60 ton

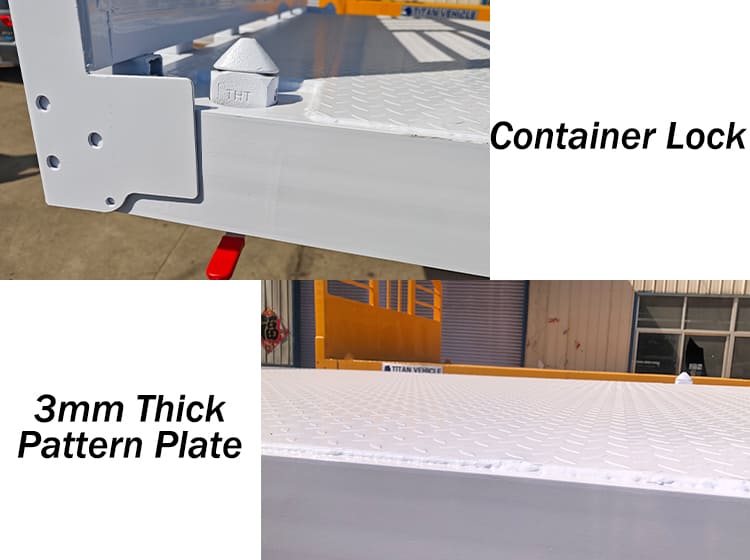

Floor Plate: 3mm thick pattern plate

Side Beam: 160mm high

Trailer Feature: front board

Tire: 12 units, 315/80R22.5

Landing Gear: 28 ton

Axles: 3 axles, 13ton

Leaf Spring: 10 layers

Suspension: mechanical suspension

Bumper: 4mm thick

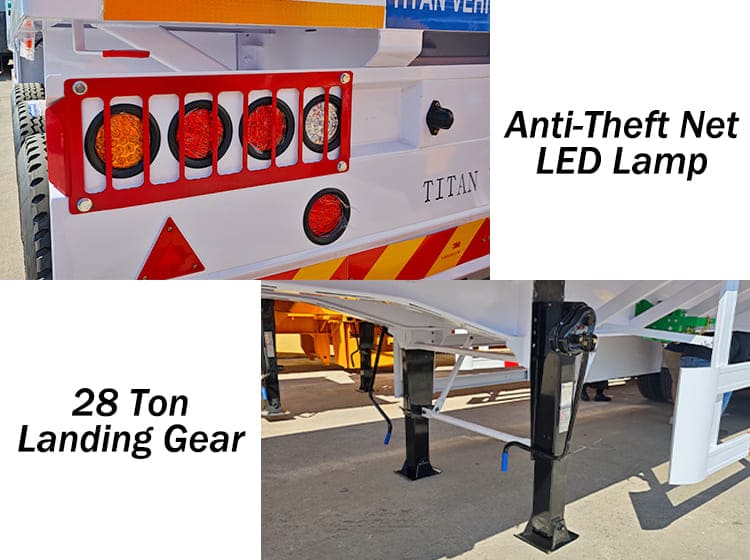

Lamp: LED Lamp with net

Buy 40 feet flatbed semi trailer now and get a spare tire for free!

Shipping of Flatbed Semi Trailer Price

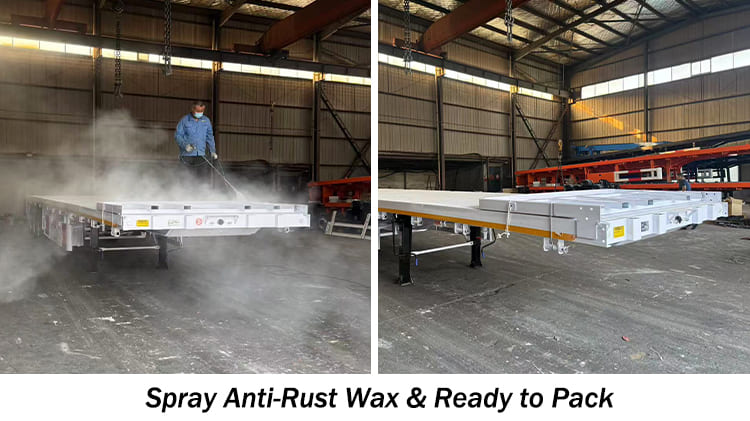

When purchasing a TITAN flatbed semi trailer, Guinea customers can choose between container shipping or ro-ro transport. Before delivery, 40 feet flatbed semi trailer undergoes a specialized packaging procedure. The flatbed semi trailer price is first coated with protective wax, then wrapped in a custom-made waterproof cover. The layered packaging approach helps shield the flatbed semi trailer price from moisture-related corrosion during maritime transit, ensuring arrives in optimal condition.

Advantage of Flatbed Semi Trailer

In order to improve the impact resistance, the flatbed semi trailer price is specially equipped with a thickened bumper with a thickness of 4mm. In the event of a collision, the thickened structure can play a buffering role, reduce the damage caused by the impact to the bulk cargo, and further enhance the safety of the 40 feet flatbed semi trailer.

In daily transportation operations, the rope tighteners installed on the flatbed semi trailer play a key role. The structural design is simple and easy to operate can effectively fix the cargo in the designated position to prevent displacement or slipping during sharp turns or emergency braking.

As an important load-bearing component of the flatbed semi trailer price, the landing gear can cope with high-intensity transportation needs. During use, the landing gear is easy to operate, which helps to reduce training costs. The structural design of its wide base expands the contact area with the ground, improves the adaptability in different loading and unloading sites, and also enhances the stability of the flatbed semi trailer when it is stationary.

In terms of the braking system, 16-ton brake pads are selected. Compared with traditional systems, the braking response is faster and the braking distance is significantly shortened, thus providing reliable protection for the driving safety of the 40 feet flatbed semi trailer.

In order to extend the service life of the power system, the flatbed semi trailer is equipped with a special durable cable. The outer layer of the cable is covered with a high-pressure rubber tube, which has good wear resistance and anti-aging properties, ensuring that the service life is at least 5 years, and the choice of shell material also further extends the reliable operation cycle of the entire system, theoretically up to 10 years.

In the design of the base plate, the flatbed semi trailer price pays attention to both visual neatness and practical performance. The patterned plate material used has an anti-slip function, which not only enhances the safety during operation, but also can withstand higher strength loads.

Compared with the common 2mm thick bottom plate on the market, the TITAN flatbed semi trailer uses a 3mm thick plate, which is more durable and has stronger impact resistance, which helps to extend the service life.

The traction plate is processed with a whole piece of 12mm thick steel plate. The design not only improves the overall hardness of the traction device, effectively avoids falling off during use, but also improves the flexibility and stability during steering.

Even on rough roads or in bad weather conditions, the traction plate can still stably transmit traction. At the same time, 40 feet flatbed semi trailer has a certain buffering capacity, which can effectively absorb the impact load generated during transportation, thereby ensuring the stability and safety of the driving process.
