40 Ft Container Side Loader

Side Loader Price: 75000 USD

The 40ft container side loader function is particularly valuable in a variety of environments such as ports, logistics centers, and shipping yards, where efficiency and adaptability are essential. With a built-in crane system, the container side loader can handle containers smoothly and securely, reducing downtime and optimizing logistics operations.

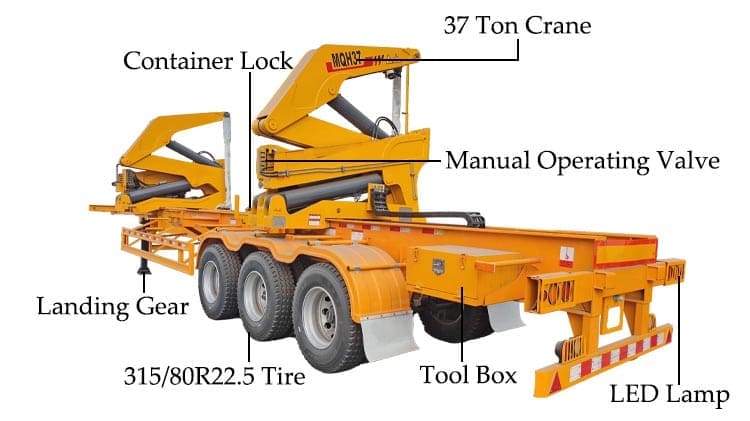

Specification of Side Loader Price

Dimension: 14100mm*2500mm*4200mm

Loading Container Size: 20ft/40ft container

Lifting Capacity: 45 ton

Tire: 12 units, 315/80R22.5

Axle: 3 axles, 13 tons, TITAN brand

Trailer Material: high strength alloy steel

Breaking System: WABCO brand

Landing Gear: JOST brand, 28 ton

Suspension: mechanical suspension

Leaf Spring: 10 layers

Lamp: LED Lamp with anti-theft net

Advantage of Side Loader Price

One of the key components of the 40ft container side loader is its hydraulic crane, which offers precise control for lifting, positioning, and adjusting containers both vertically and horizontally. The system is highly versatile and eliminates the need for traditional, often cumbersome, lifting tools. Especially in tight spaces, such as narrow warehouses or uneven work sites in Guinea, the hydraulic crane shows clear advantages by adapting easily to confined conditions.

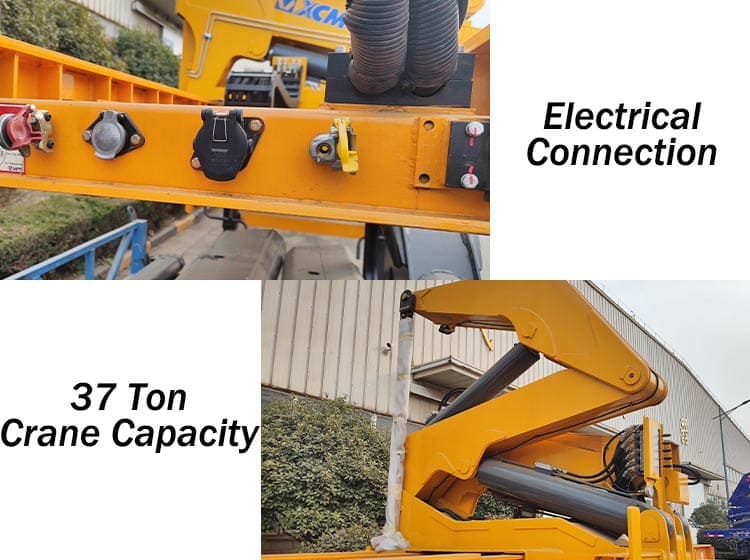

The hydraulic crane system featured on side loader is built to carry heavy loads of up to 37 tons, providing a robust solution for demanding transportation needs. Unlike traditional mechanical systems, hydraulic cranes improve operational speed and contribute to greater overall work efficiency.

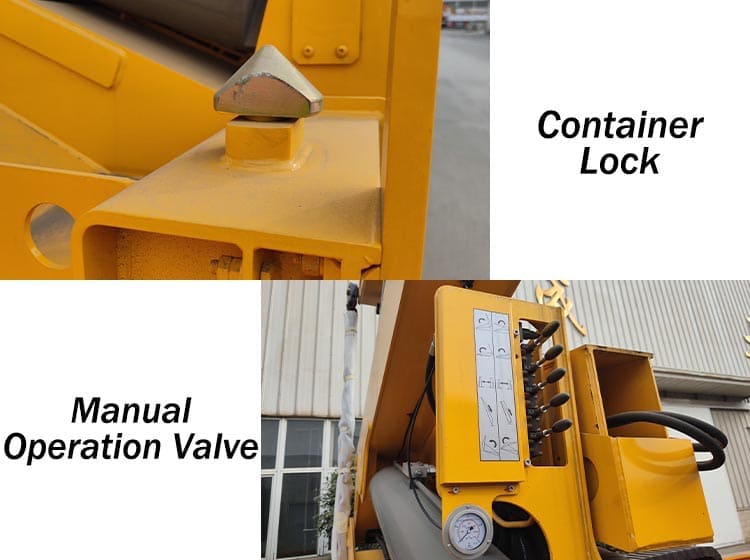

Beyond simply lifting containers, the 40ft container side loader is also engineered to transport them over long distances safely and efficiently, which comes equipped with a container locking mechanism that supports both 20-foot and 40-foot containers. The standardized design allows the side loader price to adapt to various container types without compromising on performance. During container handling, operators, such as those in Guinea, can complete the securing process by ensuring that the container lock aligns and engages properly. The straightforward procedure significantly reduces the time and complexity of the operation.

To further enhance its load bearing capabilities, the container side loader is fitted with a high strength 13-ton axle. The axle system plays a crucial role in increasing the side loader price total weight-carrying capacity to 45 tons, which is specifically developed to withstand the challenges of overloading and rough terrain, which are common in regions like Guinea. By reducing the risk of axle failure, the upgraded axle design helps extend the lifespan of the equipment, even under constant vibration or exposure to rocky roads.

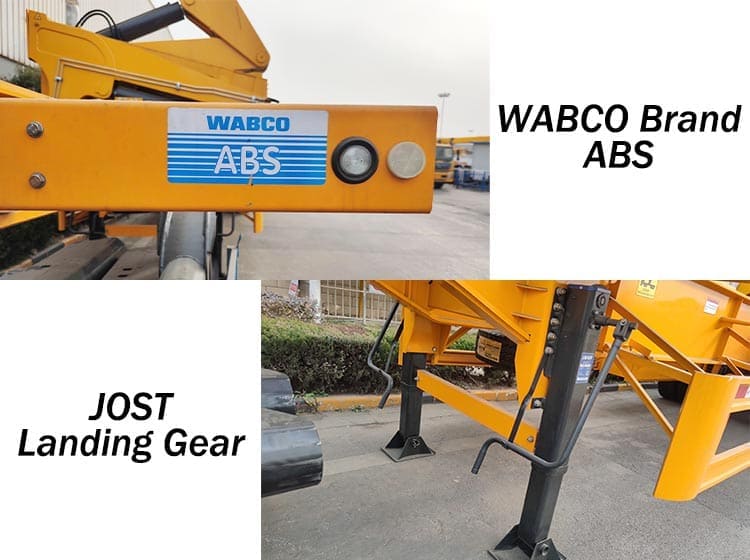

Safety is another major focus of the container side loader design. The side loader price includes an ABS (Anti-lock Braking System) to ensure more reliable and stable braking. The advanced system regulates braking force dynamically, helping to prevent the tires from locking during sudden stops.

In comparison to traditional braking systems, ABS technology not only increases safety but also enhances the responsiveness of the brakes. By shortening braking distances and maintaining vehicle control, contributes to safer container transportation, even in unpredictable driving conditions.

Another important structural feature is the landing gear system installed on the side loader price. These support legs are built to sustain dynamic loads of up to 28 tons and static loads reaching 45 tons. With a wide base structure, the landing gear distributes the container side loader weight evenly across the ground. The design reduces the risk of the side loader sinking into softer surfaces and boosts stability. As a result, the side loader price performs reliably in areas with sandy, loose, or muddy terrain, such as those often encountered in Guinea and neighboring regions.

Shipping of Container Side Loader

TITAN sets apart from other manufacturers through its thoughtful delivery process. The 40ft container side loader can be transported in a standard container, providing flexibility in logistics. Alternatively, may be shipped using RORO (Roll-on/Roll-off) vessels, depending on the customer’s needs.

To ensure the equipment arrives in top condition, each container side loader is coated with protective wax and covered with waterproof wrapping prior to shipment. The dual-layered protection guards against sea salt corrosion and damage from ocean winds during transit, keeping the side loader price well-preserved until reaches its final destination.
