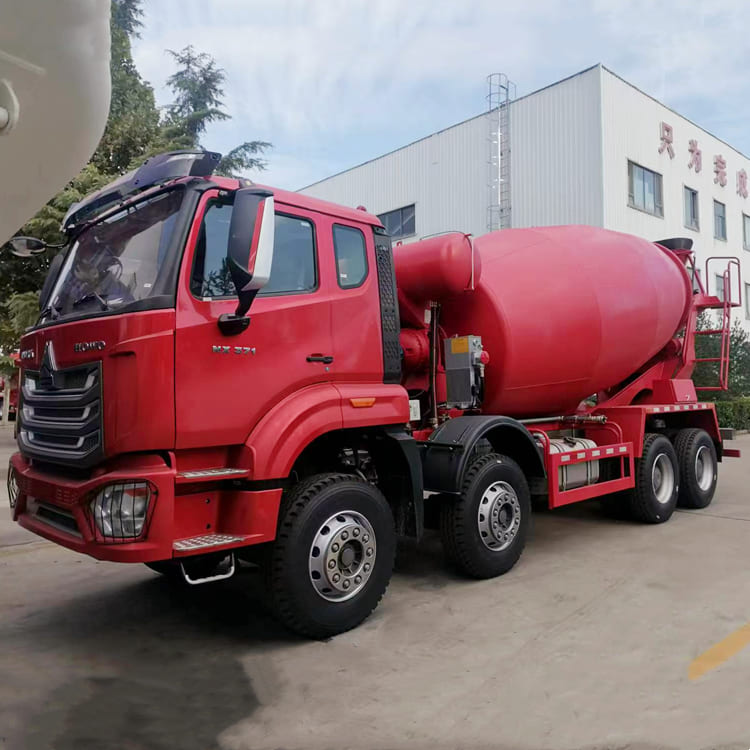

371HP Concrete Mixer Truck

Concrete Mixer Truck for Sale: 47500 USD​

The chassis frame of this concrete mixer truck is made of Q345 high strength alloy steel with a yield strength of over 370MPa. By combining reinforced longitudinal beams and anti torsion crossbeams, concrete mixer truck forms a stable load-bearing framework that effectively prevents deformation even when fully loaded.​

Even when transporting 20 cubic meters of concrete materials, the frame of the concrete mixer truck remains stable without bending risk. The static load test of this concrete mixer truck reaches 160% of the designed load, and concrete mixer truck impact resistance tested dynamically on the rough rural roads and mining areas in Guinea exceeds industry standards by 40%.

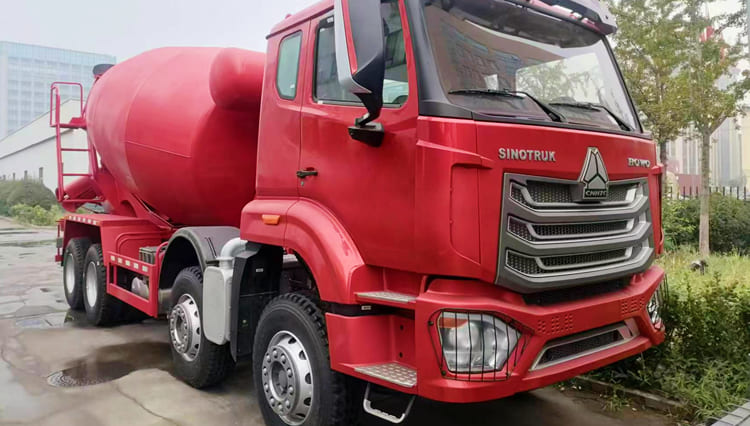

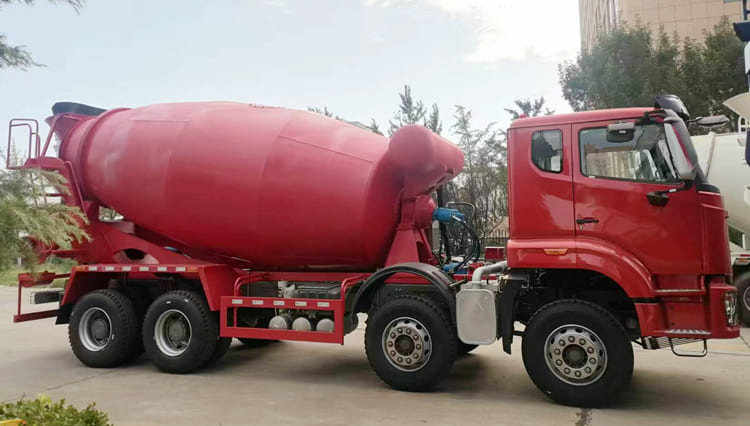

Concrete Mixer Truck for Sale in Guinea

Concrete Mixer Truck for Sale in Guinea

Concrete Mixer Truck for Sale in Guinea

Concrete Mixer Truck for Sale in Guinea

Concrete Mixer Truck for Sale in Guinea

Specification of Concrete Mixer Truck

Driving type: LHD (RHD is optional)

Engine:

Make: SINOTRUK Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission: HW19710, 10F & 2R with PTO

Front axle: HF9,1×9000 KGS, Steering with doubleT-cross section beam

Rear axle: HC16, 2×16000 KGS, Pressed axle housing, central single reduction with hub reduction, with differential locks between wheels and axles.

Ratio: 4.42

Propeller Shaft: Double universal joint propeller shaft with gear-shaped coupling flange

Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake:

Service brake: dual circuit compressed air brake

Auxiliary brake: engine exhaust brake

Electrics:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

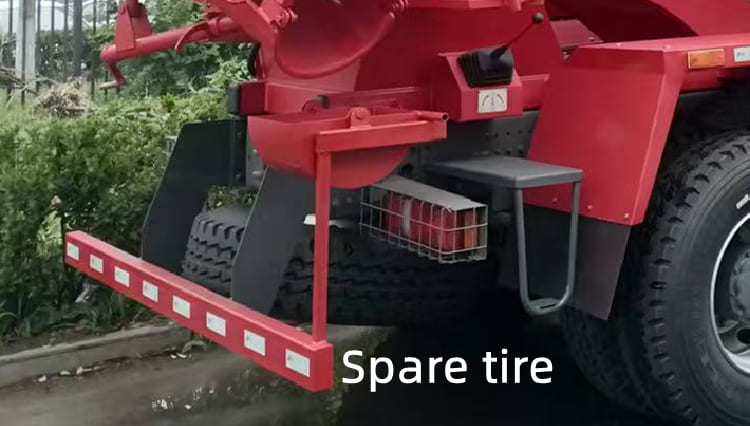

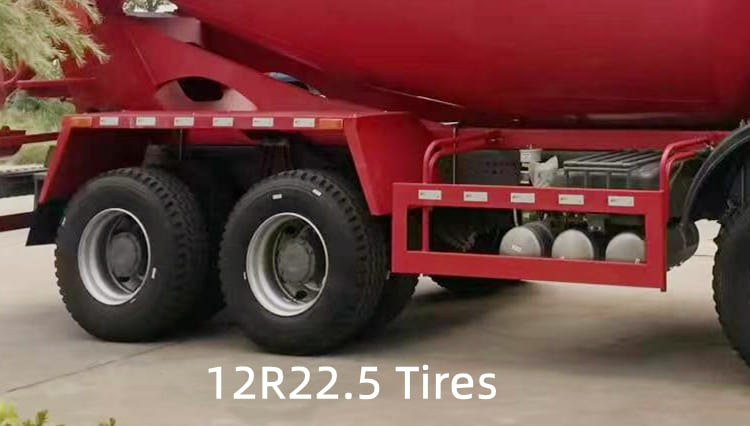

Tyres: 12R22.5, tubless tyre with one spare tyre

Fuel Tank:400L

Mixer Body:

Volume: 10 CBM;

Mixer Pump: Eton (USA Brand);

Motor: Eton (USA Brand);

Reducer: Bonfiglioli (Italy Brand);

Advantages of Concrete Mixer Truck

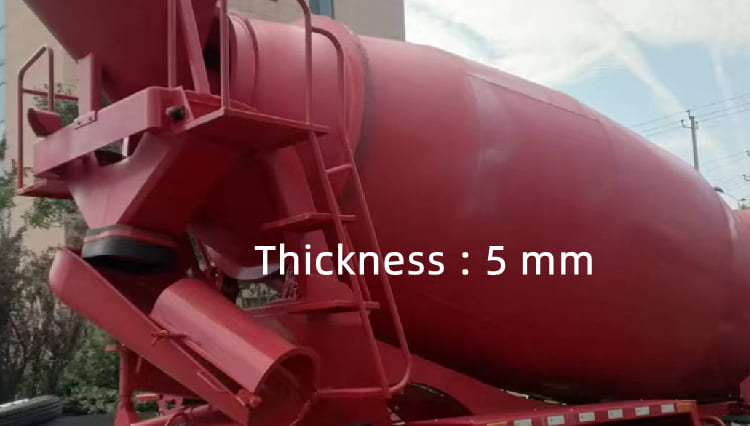

The mixing drum is made of wear resistant high strength steel plates, which are thick yet lightweight, with excellent impact resistance and wear resistance. This durability allows for long term transportation of high-wear materials—whether it is standard concrete, special modified concrete, or mixed materials with aggregates. For Guinea's rainy and humid climate, the surface of the mixing drum is treated with a special anti corrosion coating to effectively prevent rust and significantly extend the service life of the concrete mixer truck.​

The frame adopts integral robotic welding technology, and the main beam uses a channel type cross-section design to greatly enhance overall torsional resistance. All welding joints are inspected by ultrasonic testing to ensure no hidden cracks or defects. This robust design ensures that the concrete mixer truck maintains stable performance even after long-term use in harsh transportation environments.​

In addition, the concrete mixer truck supports personalized customization—customers can add anti-spill devices to prevent material leakage during transportation, or adjust the mixing speed (0-20 revolutions per minute) to adapt to the mixing needs of different materials, fully meeting the diverse transportation needs of local construction, road, and water conservancy industries.

LED warning lights with reflective tapes are installed around the entire body of the concrete mixer truck. These lights have strong penetration, ensuring that the concrete mixer truck is clearly visible to other vehicles even in dim light, heavy fog, or rainy weather—common conditions in Guinea's rural and mining areas.

The tires adopt a deep off-road tread pattern to enhance friction with the road surface. This design provides excellent grip on muddy rural roads and uneven mining sites, reducing the risk of slipping and ensuring safe transportation even in challenging road conditions.​

Moreover, the durable structure and anti-corrosion design of this HOWO concrete mixer truck minimize the frequency of repairs and part replacements, significantly reducing long-term operational costs for businesses and individual users in Guinea.
