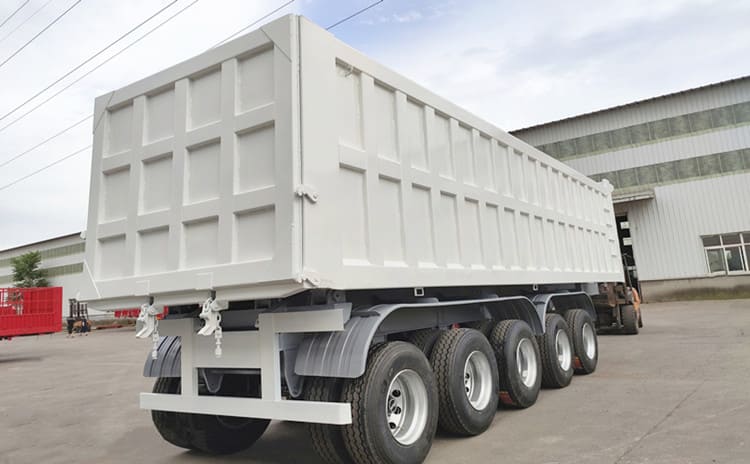

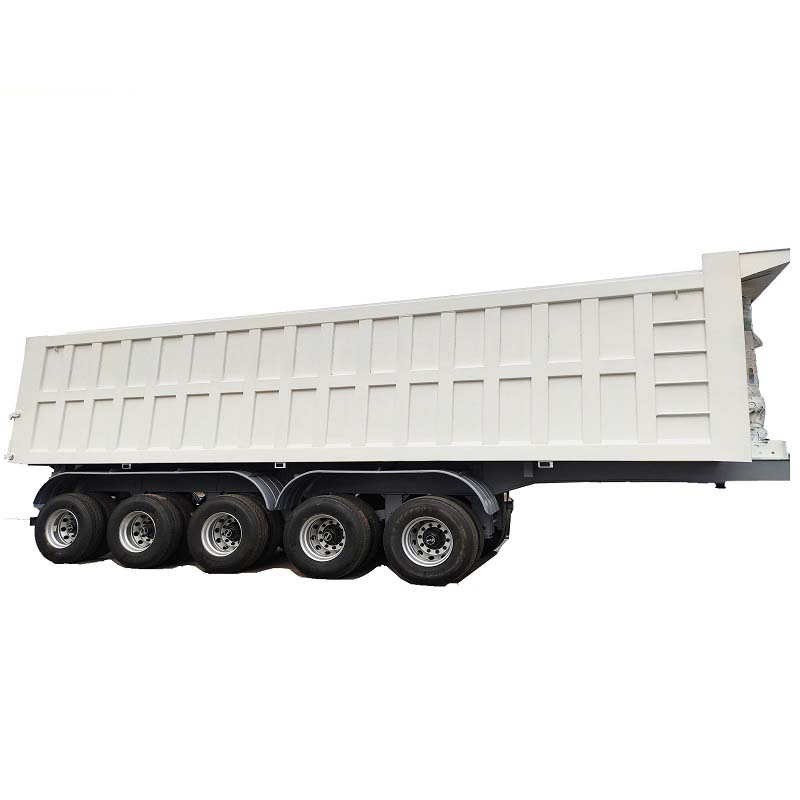

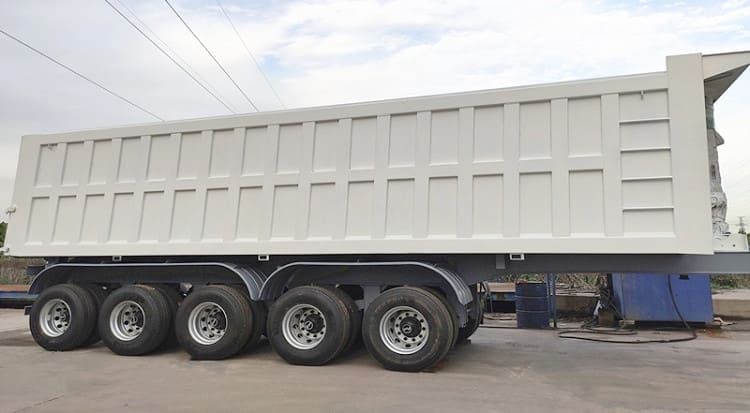

5 Axle End Dump Trailer

End Dump Trailer:

Sinotruk Guinea end dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. Sinotruk Guinea end dump equipped with reliable hydraulic HYVA cylinder.

And the loading capacity are 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from.

We can customize the end dump trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers.

Low Prices 5 Axle End Dump Trailer for Sale in Guinea Kankan

Low Prices 5 Axle End Dump Trailer for Sale in Guinea Kankan

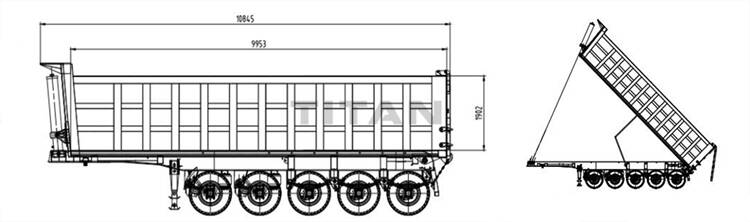

Specifications of end dump:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

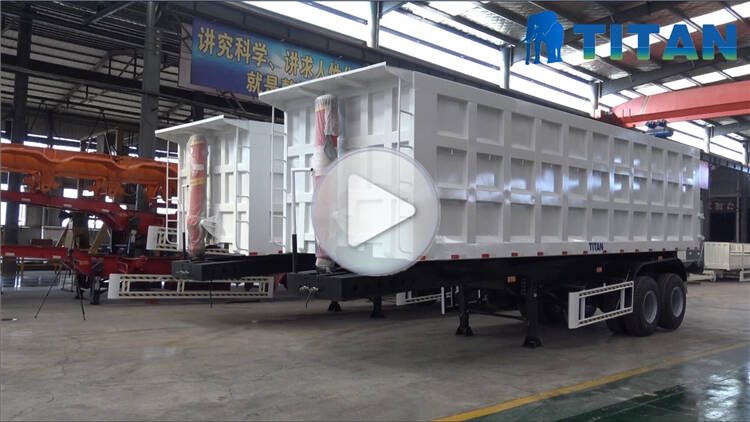

Through these videos, you can learn about different types of end dump trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
