6 Axle Rock Dump Truck Trailer

Dump Truck Trailer:

Sinotruk Guinea 6 axle U shape 45cubic rock dump trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. Sinotruk Guinea 6 axle dump truck equipped with reliable hydraulic HYVA cylinder.

And the loading capacity is 40t, 60t, 80t. We have 2,3,4,5,6 Axles models dump truck trailer for you to choose from.

Prices of 6 Axle Rock Dump Truck Trailer for Sale in Guinea Kankan

Prices of 6 Axle Rock Dump Truck Trailer for Sale in Guinea Kankan

Prices of 6 Axle Rock Dump Truck Trailer for Sale in Guinea Kankan

Advantage of rock dump trailer:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

Specification of dump truck trailer:

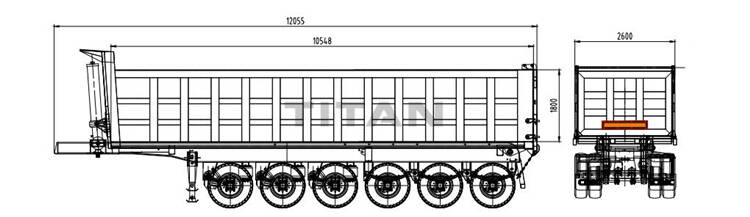

Overall dimension：12000mm * 2600mm *1800mm

Volume :  45CBM

Axles：6 axles

Suspension： Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire：24 units

King pin：90#

Landing gear： JOST

Brake system: WABCO

Electrical system: 24V, LED lights

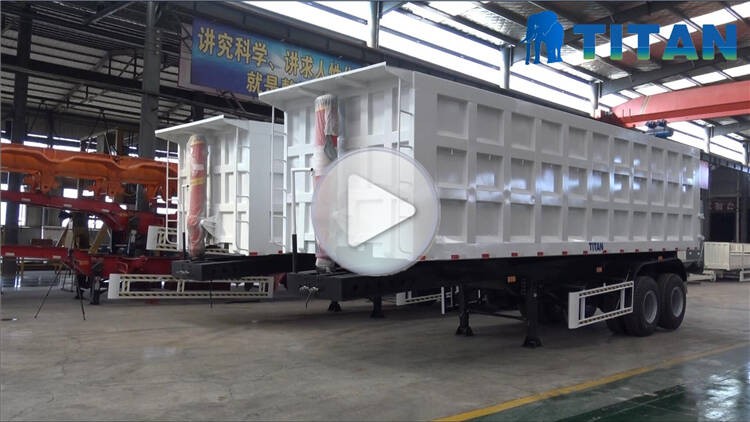

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
