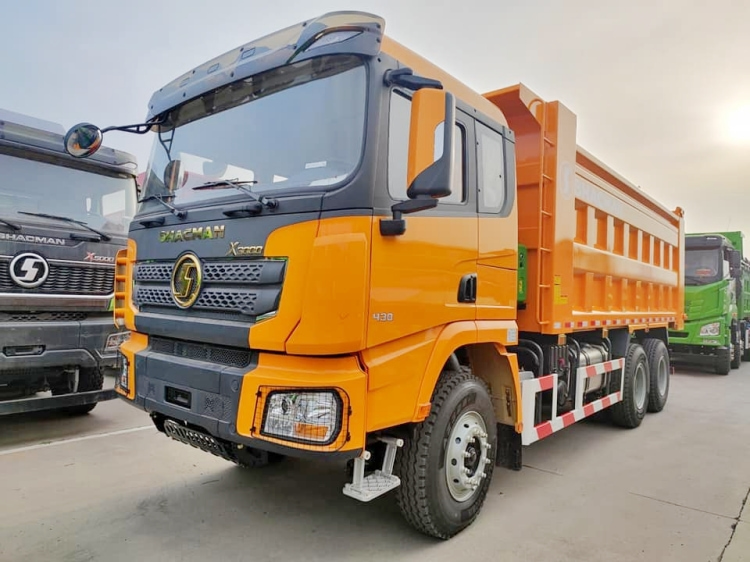

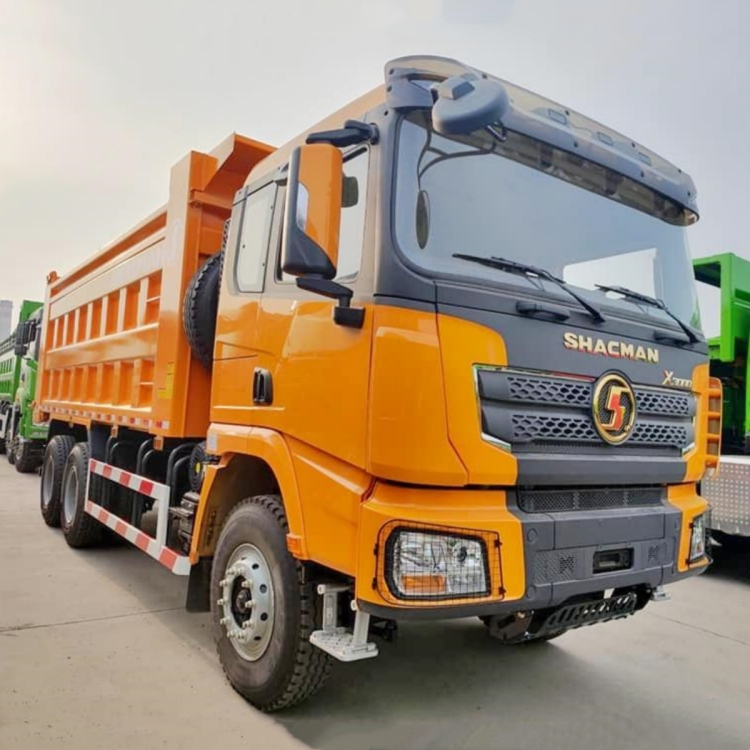

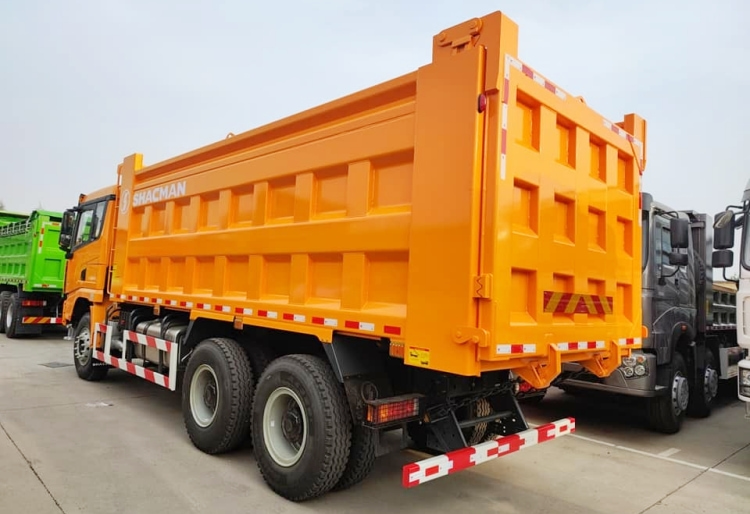

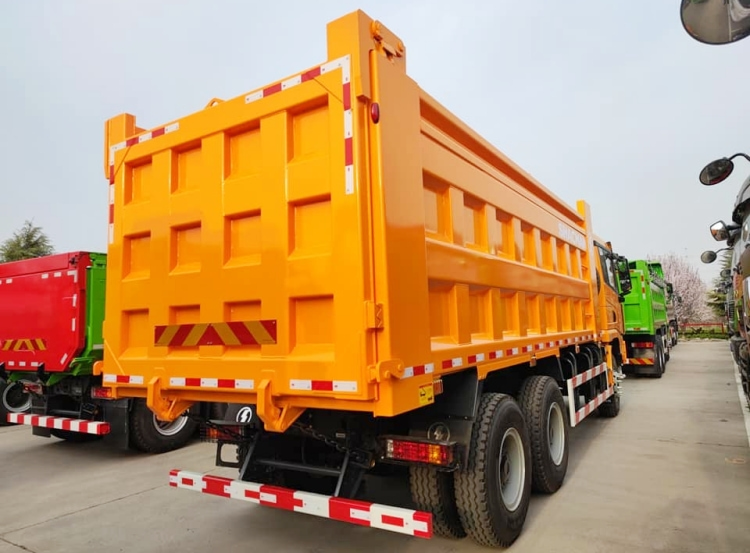

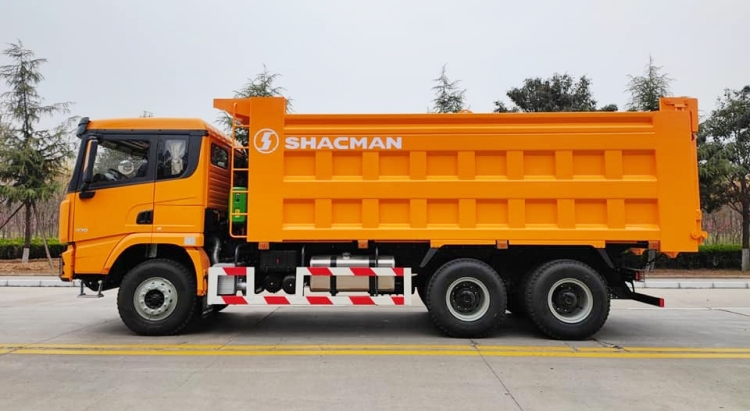

Shacman X3000 Dump Truck

Shacman X3000 Dump Truck Description :

Shacman X3000 dump truck are equipped with desert air filters. When driving in harsh environments such as construction sites, this device can make the engine have a good air intake effect, thereby prolonging the service life of the engine and improving fuel economy.

The 600-liter aluminum alloy fuel tank can not only increase the service life of the fuel tank, but also reduce the weight of the whole Shacman dump truck.

Shacman Dump Truck in Guinea Conakry | Shacman X3000 Dump Truck | Shacman 10 Wheeler Truck Price

Shacman Dump Truck in Guinea Conakry | Shacman X3000 Dump Truck | Shacman 10 Wheeler Truck Price

Shacman Dump Truck in Guinea Conakry | Shacman X3000 Dump Truck | Shacman 10 Wheeler Truck Price

Shacman Dump Truck in Guinea Conakry | Shacman X3000 Dump Truck | Shacman 10 Wheeler Truck Price

Shacman Dump Truck Specification :

Shacman Truck Traction type: 6X4

Driving type: LHD/RHD

Driver's cab: X3000 long high roof cabin, 2 seats, two sleepers, air conditioner, upper and side wind deflector, 4 points air suspension, Electrically heated rear-view mirror, electric flip, central locking

Clutch: EATON 430mm

Shacman Trailer Truck Transmission: FAST 12JSD160TA (12 speeds)

Front Axle: MAN axle, 7.5T

Rear Axle: MAN single reduction driving axle, 13T*2

Ratio: 4.111

Frame: (940-850)*300mm

Suspension: Leaf spring

Shacman Trailer Truck Tyre: 315/80R22.5 Tubeless Tyre(10+1 pcs)

Fifth wheel: 3.5’(90#)

Fuel tank: 600L Aluminium

Electrics: Operating voltage: 24V, negative grounded

Performance: Maximum driving speed: 110km/h

Shacman Dump Truck Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP12.380E32   Euro2

Maximum output: 380HP(280kW)

Rated speed: 2200rpm

Shacman Dump Truck  Dimension

Wheel base(mm): 3175+1400mm

Overall size(mm): 7000x2550x3700mm
