Tri Axle 80 Ton Drop Deck Trailer

Tri Axle Drop Deck Trailer Description :

Drop deck trailer for sale in Guinea main beam height is 550mm. The upper and bottom plate thickness is 22mm and the middle plate is 20mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

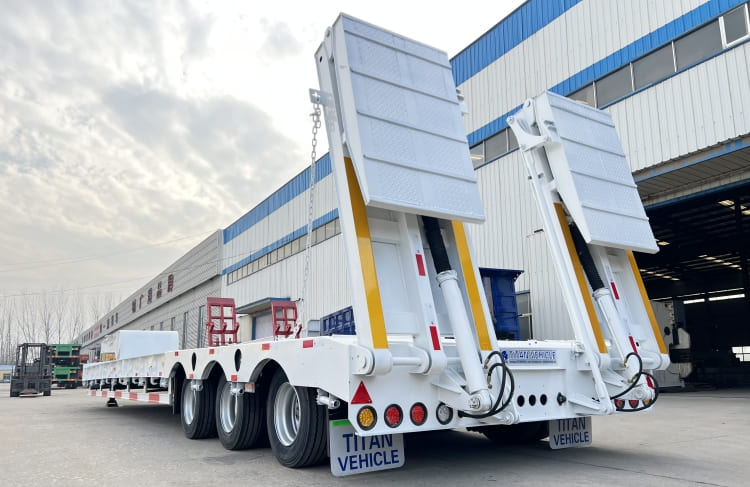

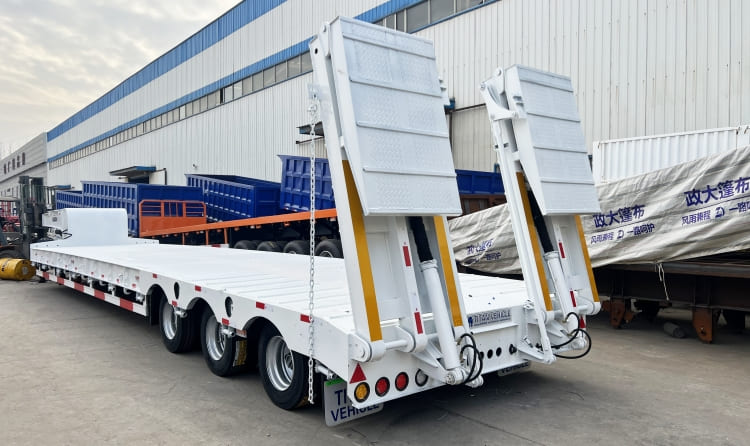

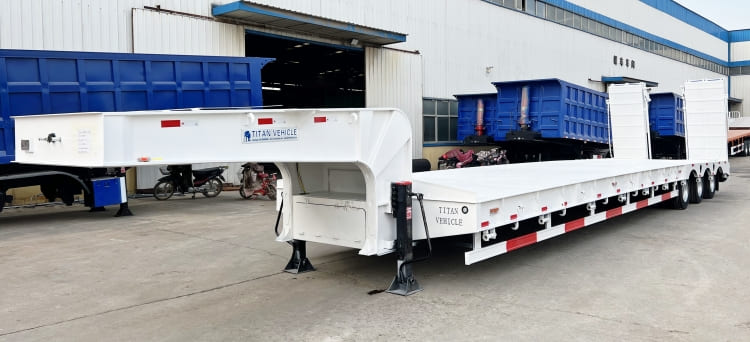

Tri Axle 80 Ton Low Drop Deck Semi Trailer for Sale in Guinea

Tri Axle 80 Ton Low Drop Deck Semi Trailer for Sale in Guinea

Tri Axle 80 Ton Low Drop Deck Semi Trailer for Sale in Guinea

Tri Axle 80 Ton Low Drop Deck Semi Trailer for Sale in Guinea

Tri Axle 80 Ton Low Drop Deck Semi Trailer for Sale in Guinea

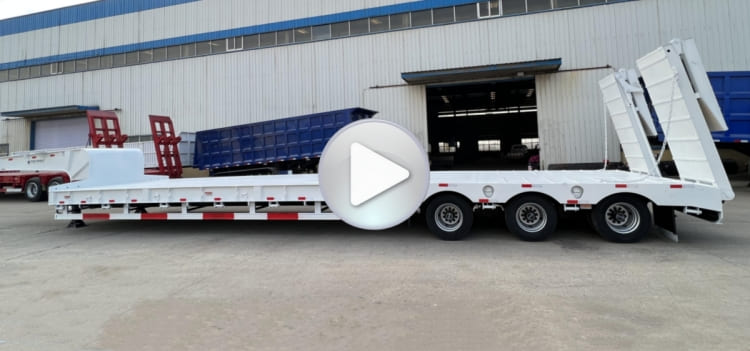

Video of 80 Ton Drop Deck Trailer :

Low Deck Trailer Specification :

Overall dimension: 15800mm * 3000mm *1700mm

Loading capacity(T): 60-80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Leaf Spring: 90(W)mmx13(Thickness)mmx10 layers

King pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand/TITAN brand

Bottom Platform: 5mm thick checkered plate

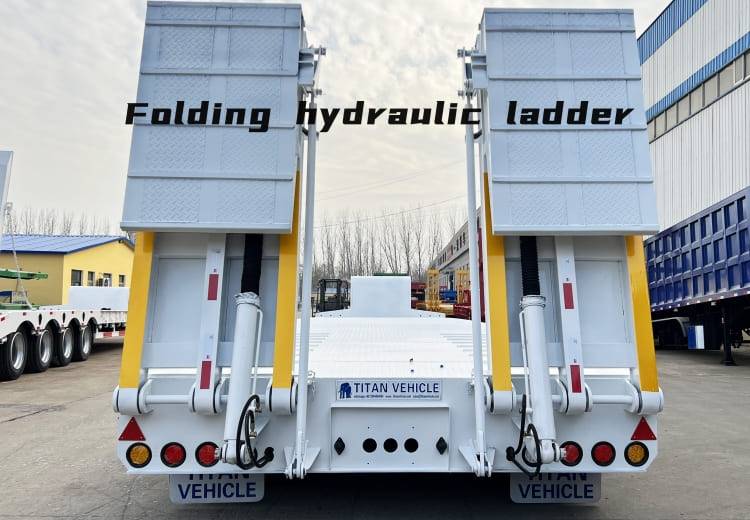

Ramp: Folding hydraulic ladder
