Tri Axle Removable Gooseneck Trailer

Lowboy Trailer Description:

Sinotruk Guinea can make the 2/3/4 axles removable gooseneck lowboy trailers and heavy duty lowboy trailer,  the capacity of 60/80/100/120/150 ton removable gooseneck trailer.

To meet your transport needs and your local regulations, we can customize different configuration removable gooseneck lowboy trailer for you.

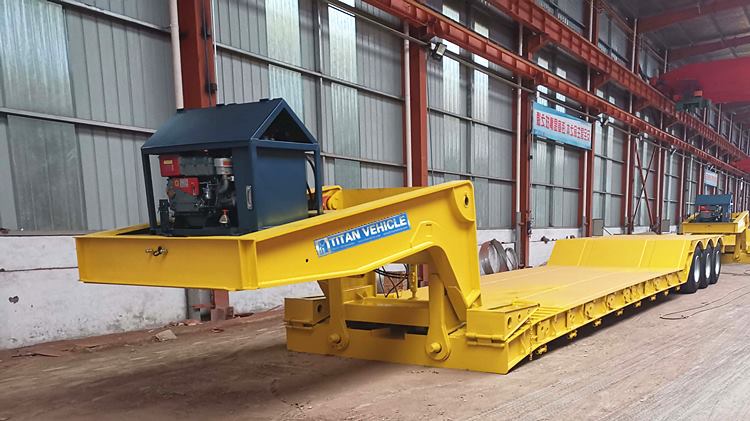

Tri Axle Removable Gooseneck Lowboy Trailer for Sale in Guinea Conakry

Tri Axle Removable Gooseneck Lowboy Trailer for Sale in Guinea Conakry

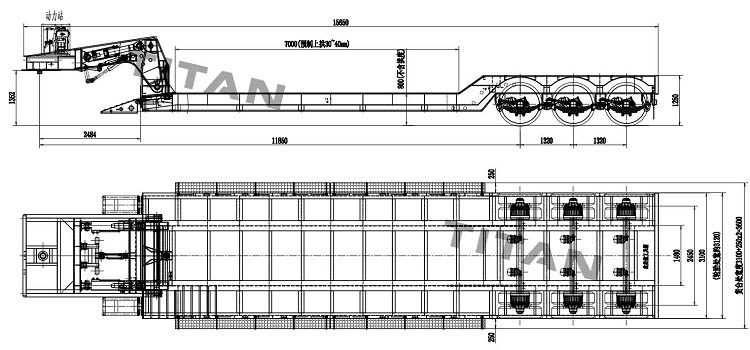

Specification of gooseneck trailer:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 60-80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

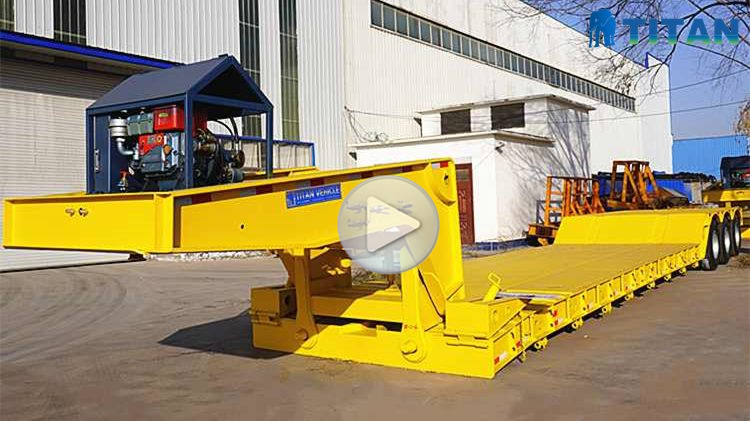

Through the video, you can know different types of custom lowboy trailer , heavy duty lowboy trailer , lowboy heavy haul trailers, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
