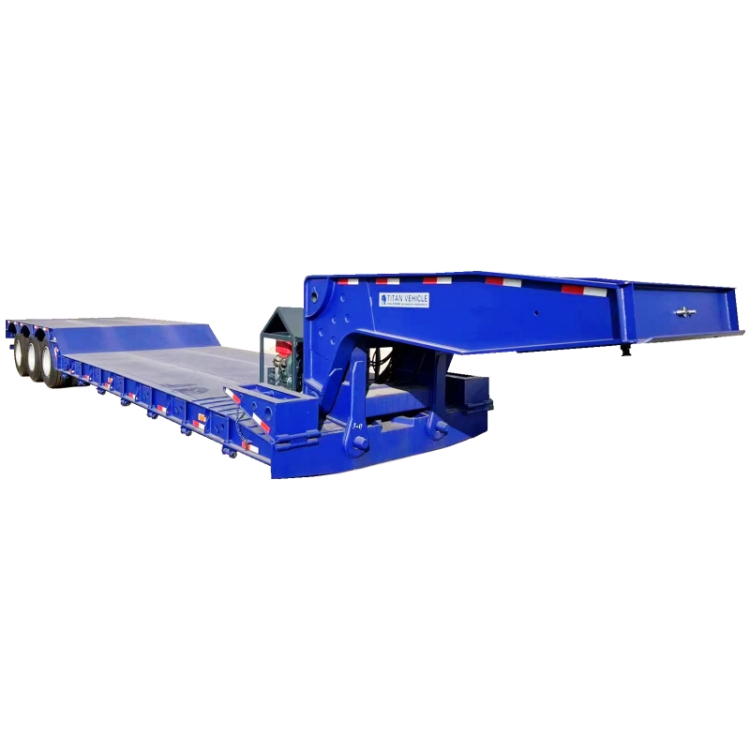

60 Ton Detachable Gooseneck Trailer

Lowboy Gooseneck Trailer for Sale Description :

TITAN lowboy gooseneck trailer for sale cargo table is very low, so the stability and security are very good. TITAN also can provide all kinds different detachable lowboy trailer with different loading caoacity from 60-180 tons.

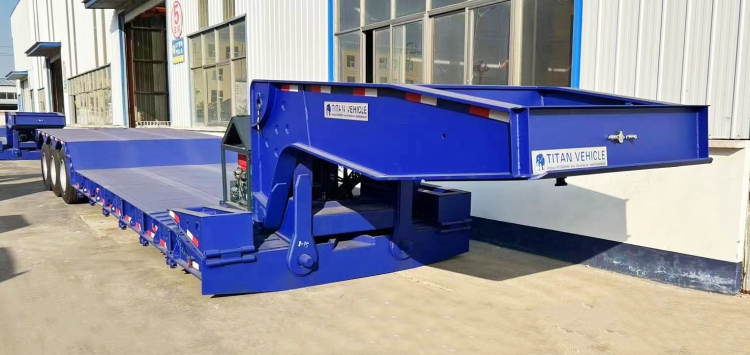

60 ton lowboy gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer for sale is restored to the original transportation state in time for transportation.

60 Ton Detachable Lowboy Gooseneck Trailer for Sale in Guinea

60 Ton Detachable Lowboy Gooseneck Trailer for Sale in Guinea

60 Ton Detachable Lowboy Gooseneck Trailer for Sale in Guinea

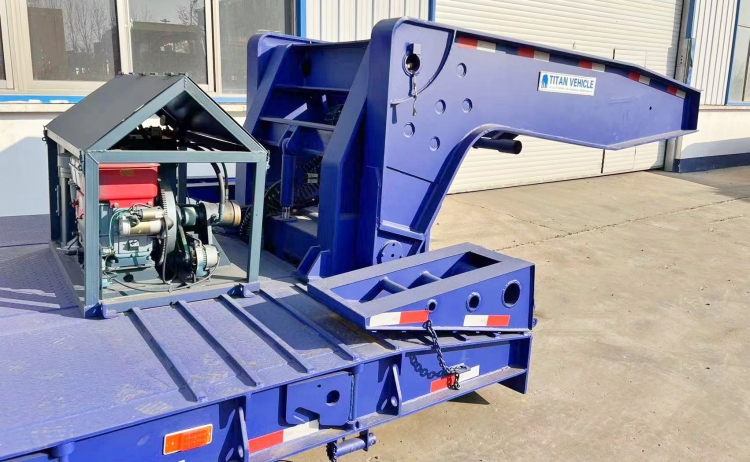

TITAN detachable lowboy trailer adopt 12 KW diesel engine

60 Ton Detachable Lowboy Gooseneck Trailer for Sale in Guinea

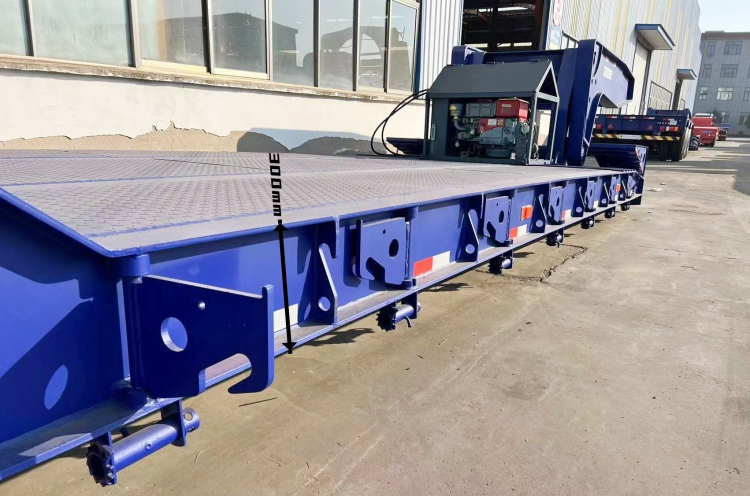

Lowboy trailer for sale side beam adopts "H" type design,the height of middle plate is 300 mm,the thickness is 8 mm;the upper and bottom plate is 10 mm.

60 Ton Detachable Lowboy Gooseneck Trailer for Sale in Guinea

60 Ton Lowboy Gooseneck Trailer Specification :

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 60-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

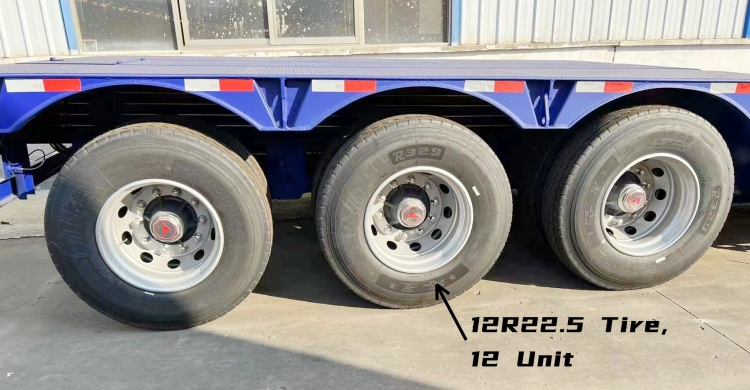

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

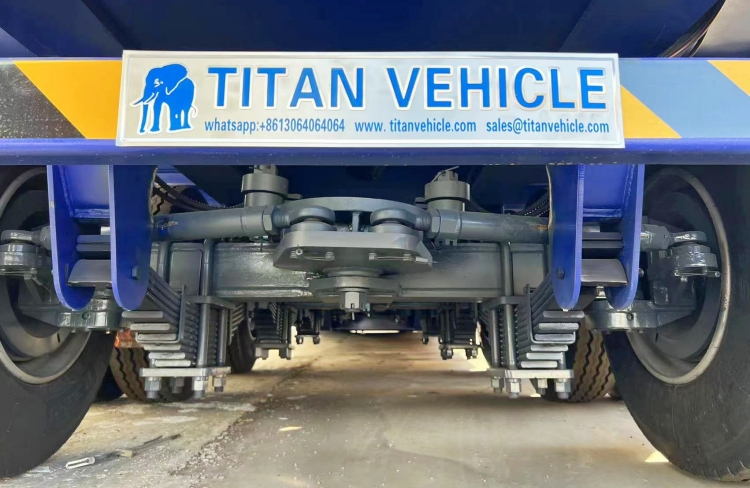

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Hydraulic cylinder: 12KW diesel engine with hydraulic station

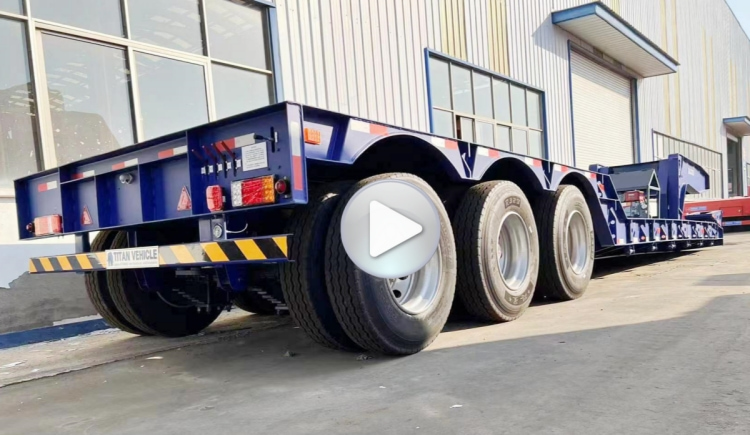

Video of Detachable Lowboy Trailer :
