3 Axle 40Ft Step Deck Trailer

Step Deck Trailer:

Sinotruk Guinea 3 Axle 40Ft Excavator Step Deck Trailers are widely used in crawler cranes and other heavy machinery transportation. 40Ft Excavator Trailer use high strength steel material to ensure capacity. We produce very durable ones with high strength to meet the transport needs.

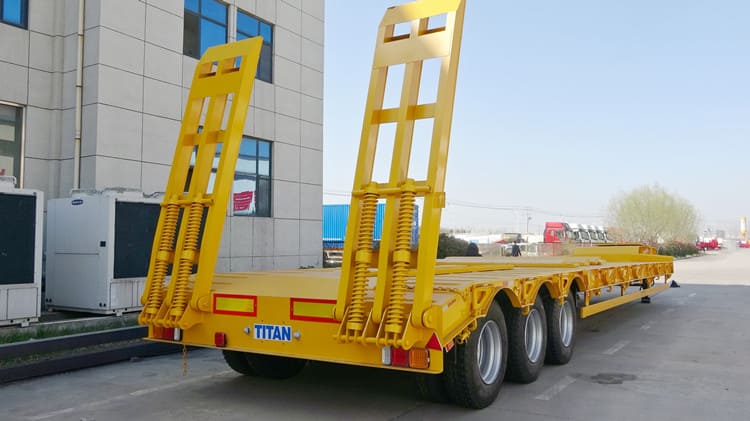

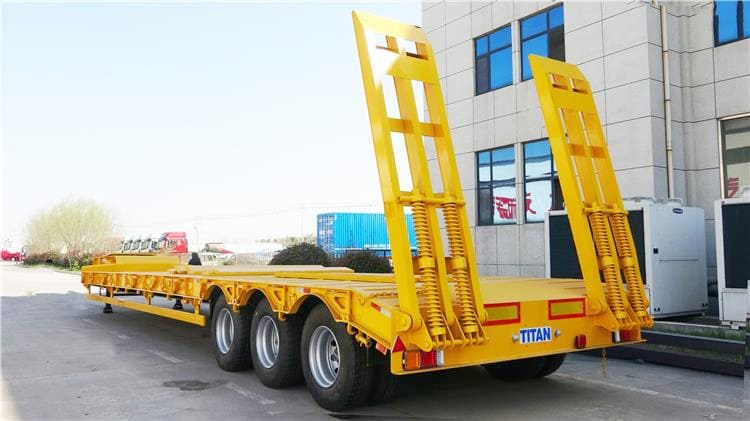

Strong and durable ladder, our ladder is made of high-strength steel plate HG60, welded with strong bearing capacity, effectively ensuring that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

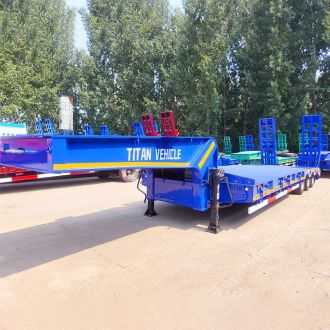

New 3 Axle 40Ft Excavator Step Deck Trailer for Sale in Guinea Kindia

New 3 Axle 40Ft Excavator Step Deck Trailer for Sale in Guinea Kindia

New 3 Axle 40Ft Excavator Step Deck Trailer for Sale in Guinea Kindia

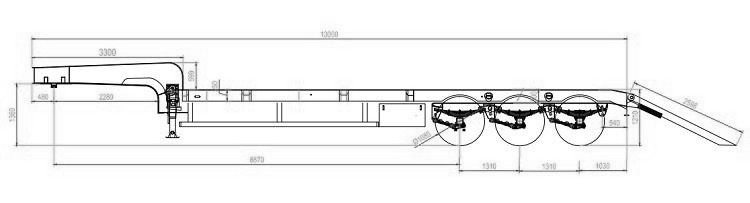

Specification of step deck trailer:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

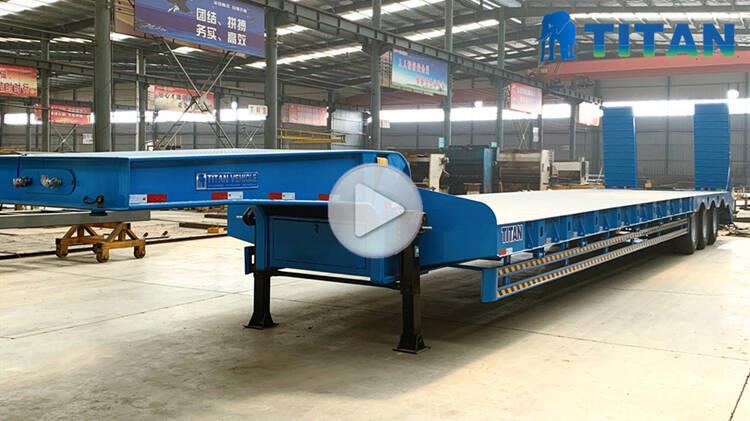

Through this videos, you can learn about different types of semi low bed trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
