Tri Axle Low Loader Truck Trailer

Low Loader Trailer:

Low loader truck is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. Low loaders for sale is used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the low loader trailer according to your needs.

New tri axle 60t low loader trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 100 ton payload. The loading ramps are made of high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.

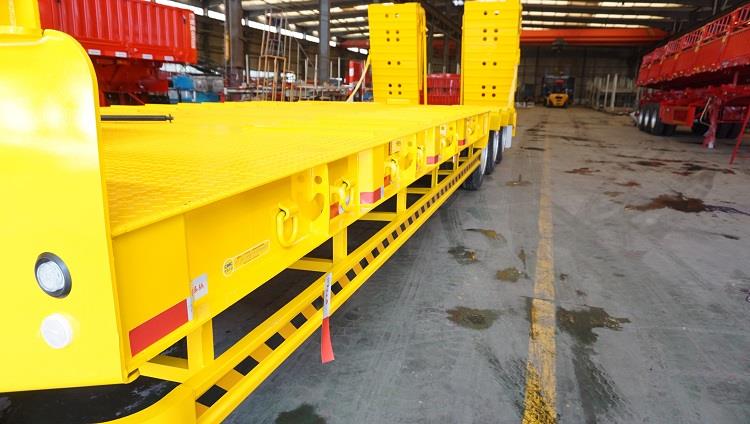

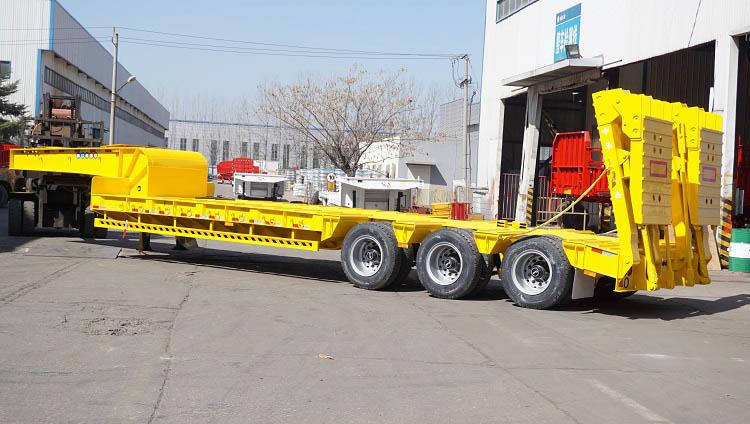

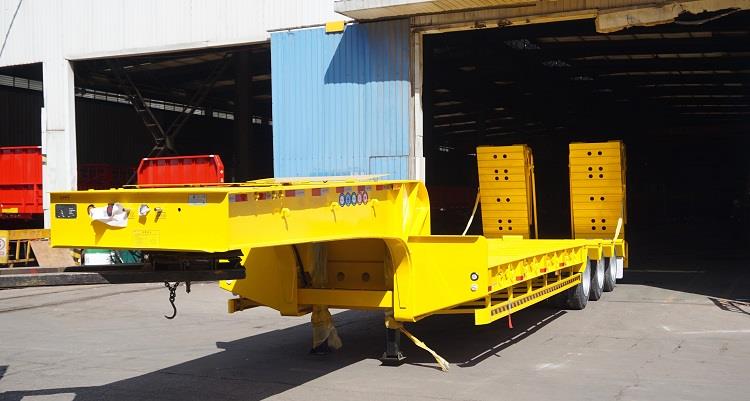

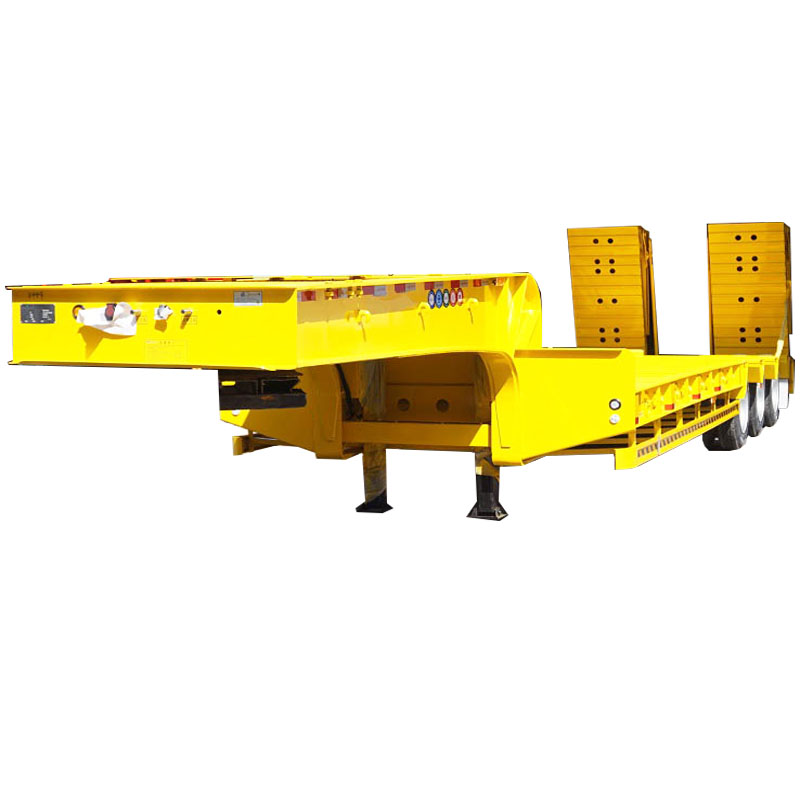

 Tri Axle 60T Low Loader Truck Trailer for Sale in Guinea Kankan

 Tri Axle 60T Low Loader Truck Trailer for Sale in Guinea Kankan

 Tri Axle 60T Low Loader Truck Trailer for Sale in Guinea Kankan

Specification of low loader truck:

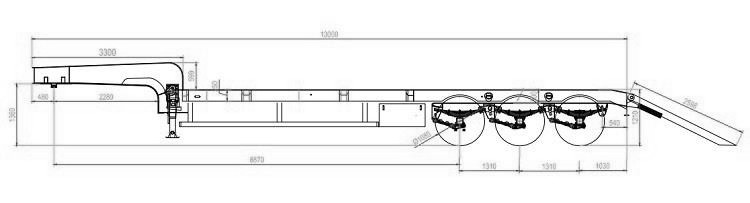

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

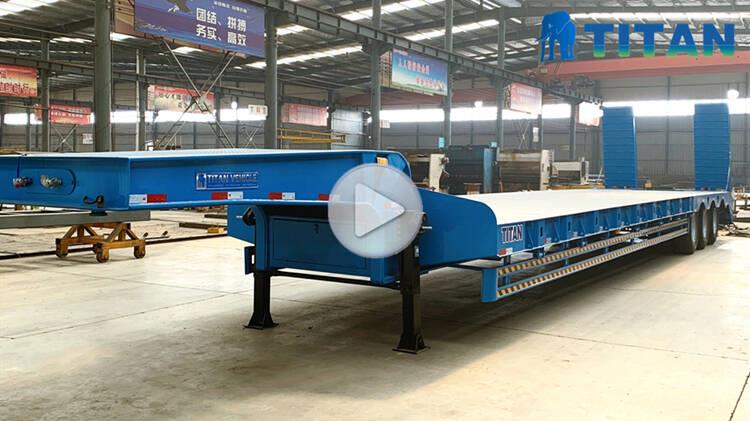

Through this videos, you can learn about different types of low loader trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
